BRAKES
9.13

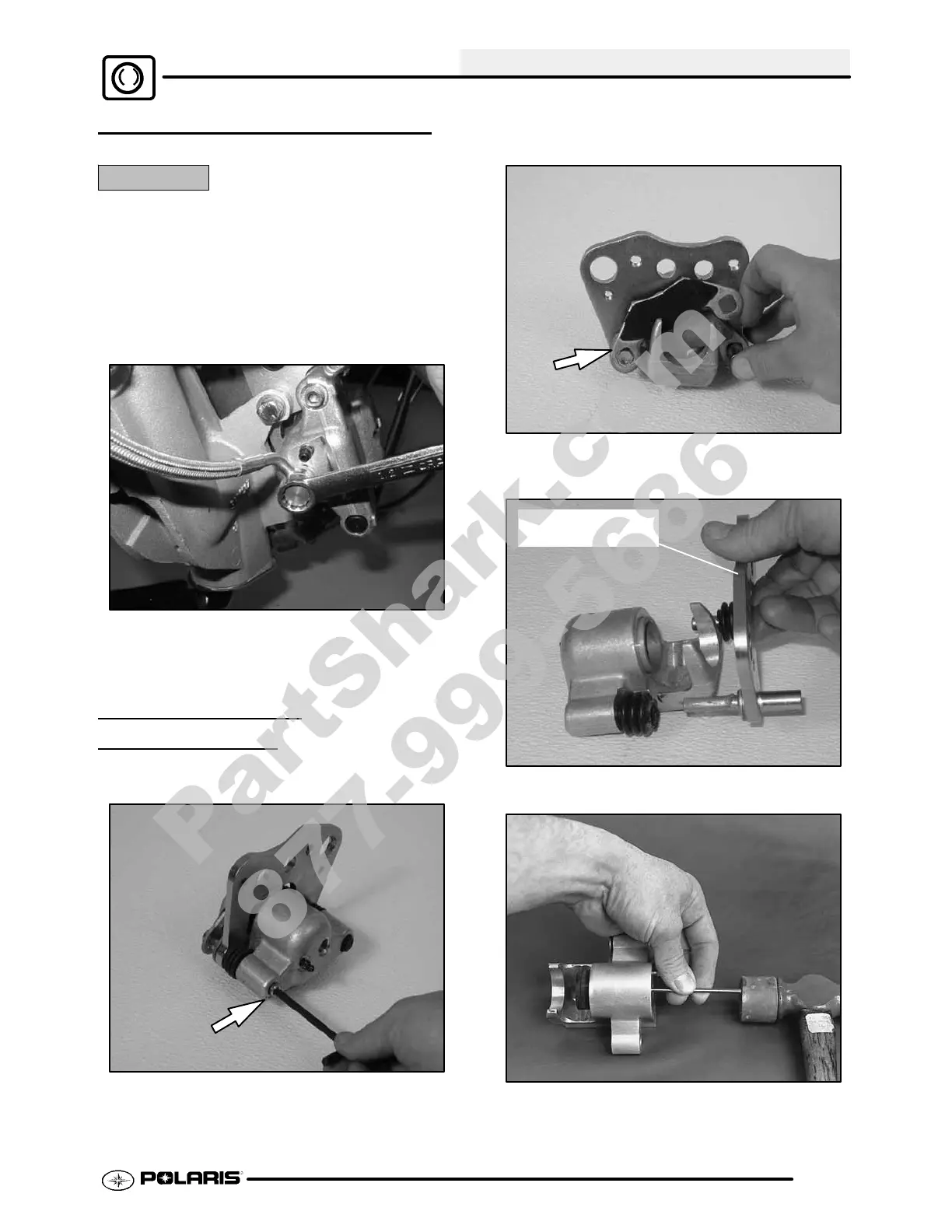

FRONT CALIPER REMOVAL
CAUTION:
Use care when supporting vehicle so that it does
not tip or fall. Severe injury may occur ifmachine
tips or falls.
1. Remove brake pads.
2. Use a 1/2 wrench, loosen and remove brake line
to caliper . Place a container under caliper to
catch fluid draining from brake line.
3. Remove two brake caliper mounting bolts.
4. Remove brake caliper and drain fluid into
container. Do not reuse brake fluid.
FRONT CALIPER
DISASSEMBL
Y
1. Remove brake pad adjuster screw.
2. Pushupper pad retainerpininwardand slipbrake
pads past edge.
3. Remove mounting bracket, pin assembly and
dust boot.
Remove
Mounting Bracket
4. Remove piston, dust seal and piston seal.
