ELECTRICAL
10.33
STARTER DRIVE
Pinion Gear - Anti Kick-out Shoe, Garter
Spring Replacement
If the garter spring is damaged, the overrun clutch
may failto return properly. The replacement spring is
(PN 7042039). Use either of thefollowing methodsto
remove and install a new garter spring.

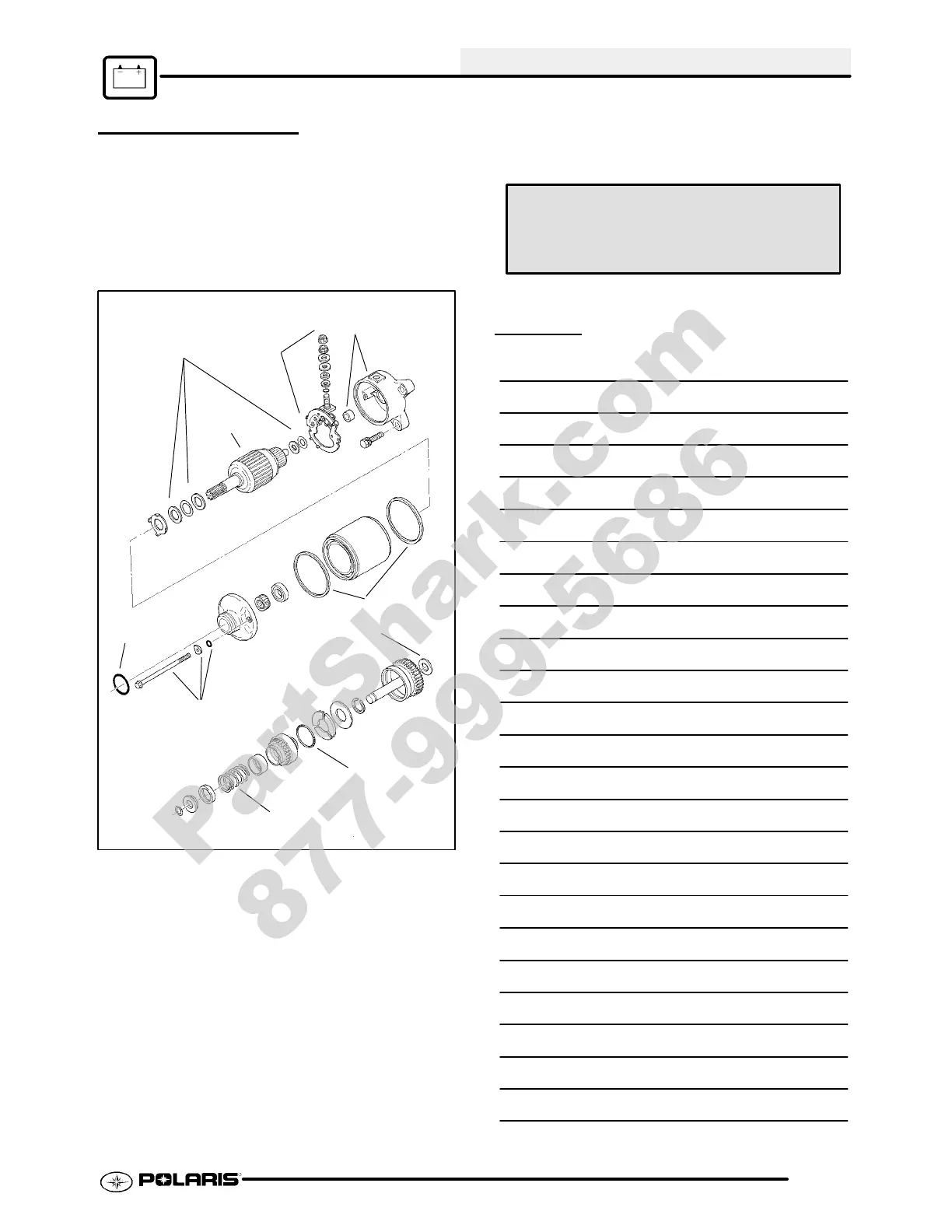

Starter Motor Exploded View
O-ring
Rear Brkt Assy
Armature
SetBoltAssy
Washer
Washer Set
Rubber Rings
Weight Spring
Return Spring
Carbon
Brush
Set
1. Screw the overrun clutch out to the engaged
position on the pinion shaft assembly. Use a
smallpiece of wirewiththeendbentinahookand
pick the old spring out of its channel. Slide it off
theendof theshaft. Slidethenewspring overthe
overrun clutch and into the spring groove. Make
sure that the spring is positioned between the
shoe alignment pins and the back flange of the
anti kick-out shoes.
2. Remove the lock ring, end washer, spring
retainers and clutch return spring. Screw the
overrun clutch off the end of the pinion shaft.
Remove the old spring and install a new one.
Lightly grease the pinion shaft and reinstall the
clutch,spring,retainers,endwasherandlockring
inthereverseorder. Make suretheendwasheris
positioned properly sothat it will holdthelock ring
in its groove.
Polaris Premium Starter Drive Grease
(PN 2871460)
NOTES
