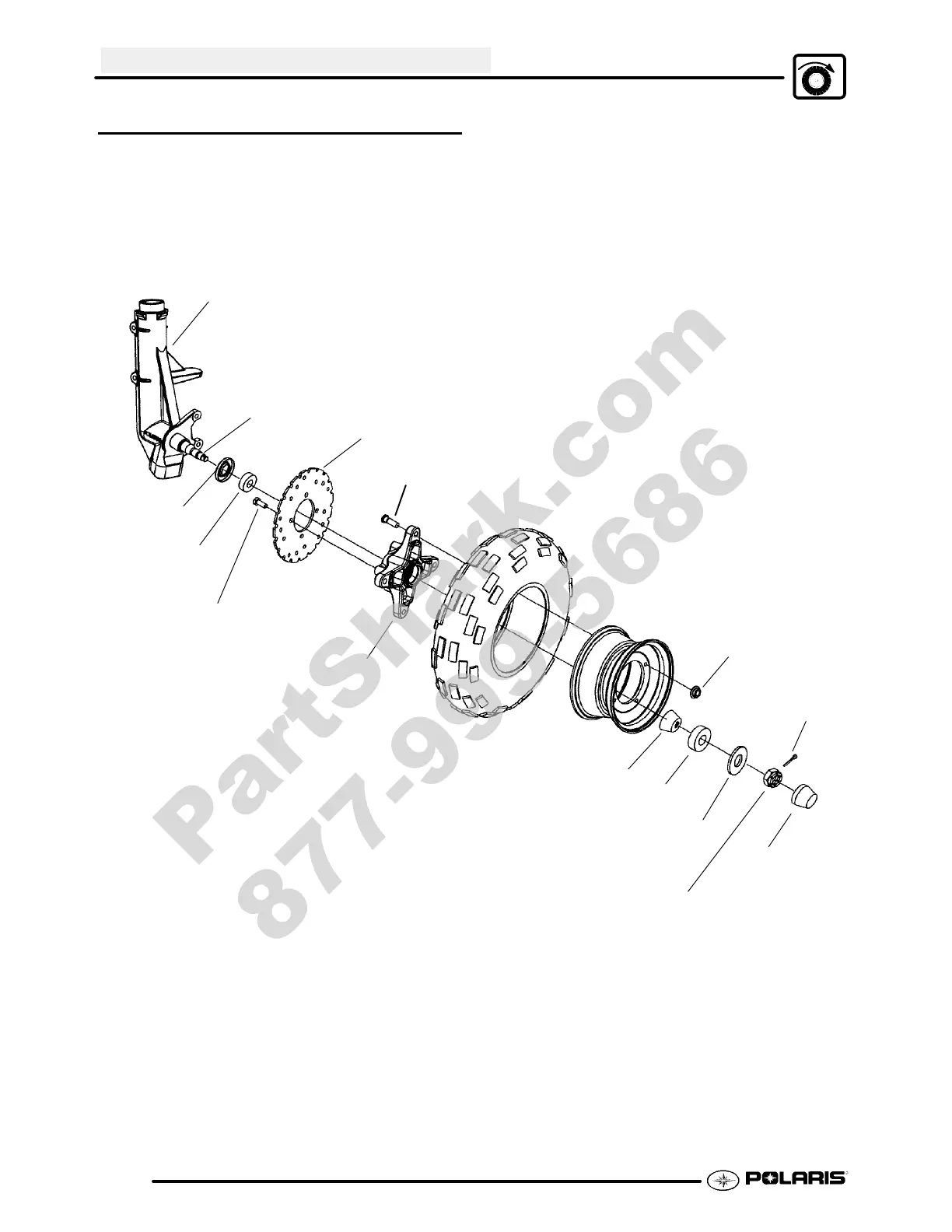

Polaris 2009 Trail Boss 330 - Front Hub Exploded View

Hub
Brake Disc
Spindle
Strut Housing
Seal
Bearing
Bearing
Spacer
Spindle Nut
40 ft. lbs.
(55.3 Nm)
Cotter Pin
W asher
Hub Cap
18 ft. lbs. (24.9 Nm)
Use new bolts with pre-applied
locking agent.
Wheel Nut
27 ft. lbs.
(37 Nm)
Wheel Stud
FINAL DRIVE
7.6
FRONT HUB EXPLODED VIEW
