CLUTCH
6.19

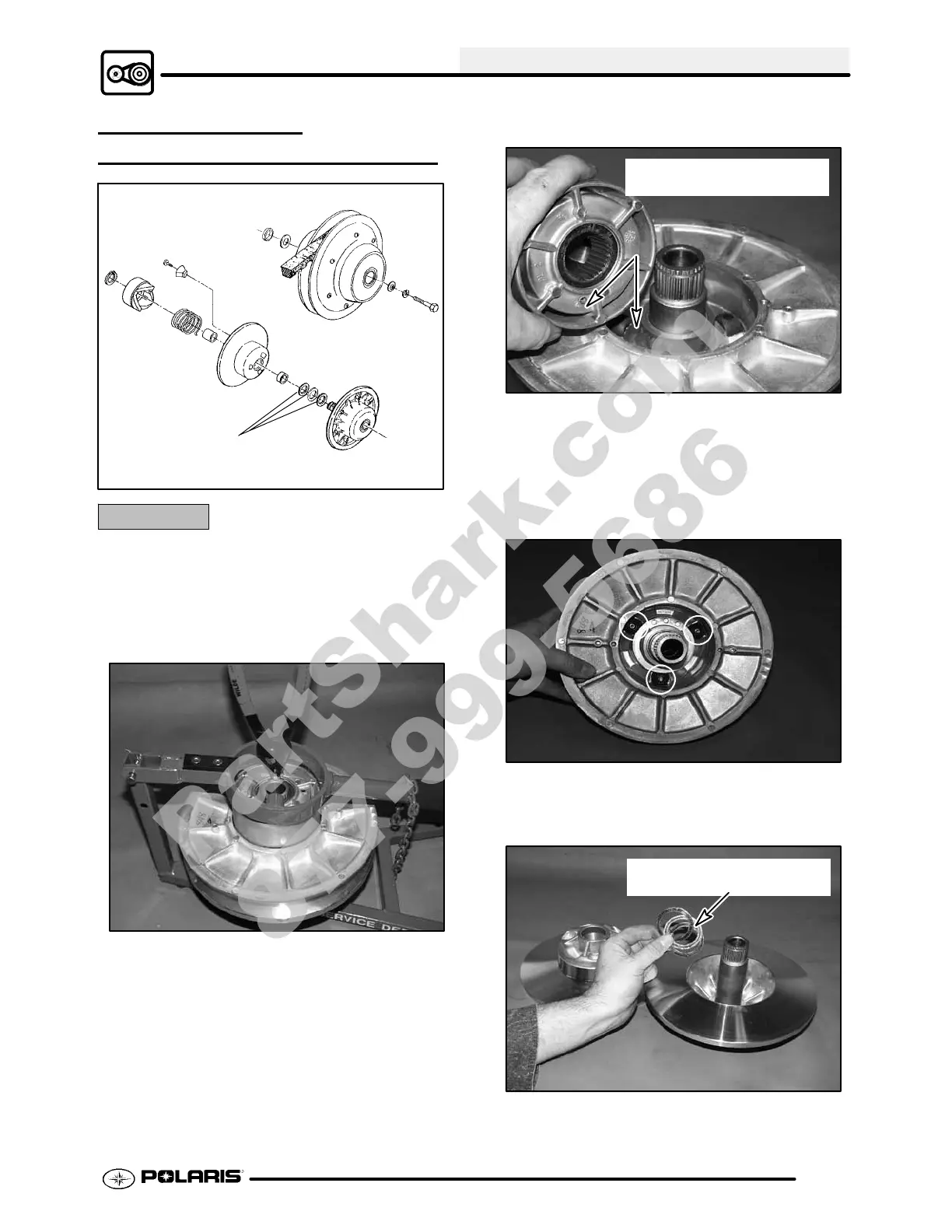

DRIVEN CLUTCH
DISASSEMBL
Y/INSPECTION
Used to adjust
belt tension. One must
always be installed.
CAUTION:
Wear eye protection when removing snap ring to
prevent serious personal injury.
1. Apply and hold downward pressure on the helix,
or place driven clutch in the Clutch Compression
Tool (PN 8700220).
2. Remove snap ring retainer.
Note hole location of spring
in helix and sheave
3. Note the location of the spring and remove helix.
4. Note the location of the spring in the moveable
sheave, and remove the spring.
5. Check alignment of tabs on spring. Replace the
springiftabsaremisalignedorthespring coilsare
distorted.
6. Inspectrampbuttonsinthemoveablesheaveand
replace if worn. NOTE: The ramp buttons are
secured by Torxt screws (T20).
Belt deflection adjustment
washers
