CLUTCH
6.17

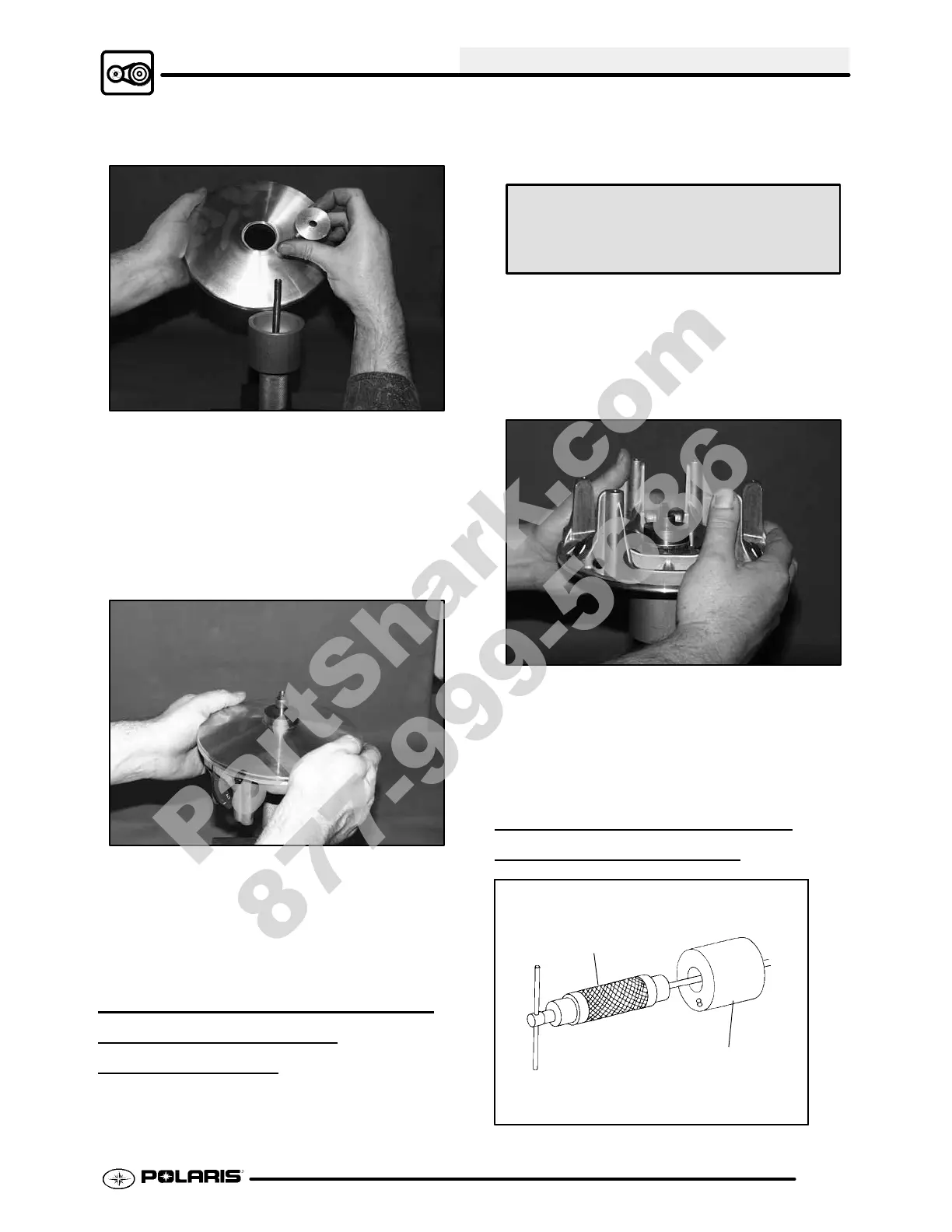

3. InstalltheMainPuller Adapter(#8) (PN 5020632)
onto the Piston Pin Puller (PN 2870386).
4. Insert the Number T wo Adapter (#10) (PN
5020633) into the bushing from belt side as
shown. With towers pointing toward vise, slide
sheave and bushing onto puller rod.
5. Installthenut removedinStep2 ontoendofpuller
rod and hand tighten. Turn puller barrel to
increase tension on sheave if needed. Nut is left
hand thread
6. Turn sheave and puller barrel together
counterclockwise on puller rod until bushing is
removed.
7. Remove nut from puller rod and set aside.
8. Pullbushing removaltooland adapter from puller
rod. Remove bushing from tool and discard.
DRIVE CLUTCH MOVEABLE
SHEAVE -
BUSHING
INSTALLA
TION
1. PlacetheMain Puller Adapter (#8) (PN 5020632)
onto the puller.
2. Apply Loctitet 680 (PN 2870584) to the back
side of new bushing. Push bushinginto center of
sheave on tower side by hand.
Bushing (PN 3576504)
Loctitet 680 (PN 2870584)
3. Insert the Clutch Bushing Installation Tool (#2) (PN
5020628) into center of sheave and with towers
pointing away from vise, slide sheave onto puller
rod.
4. Install nut on puller rod and hand tighten. Turn
barrel to apply additional tension if needed.
5. Turn sheave and barrel together
counterclockwise until bushing is seated.
6. Remove nut from puller rod and set aside.
7. Remove sheave from puller.
8. Remove installation tool.
DRIVE CLUTCH COVER -
BUSHING REMOV
AL
Main Puller
Adaptor (#8)
Piston Pin Puller
(PN 2870386)
