BRAKES
9.16

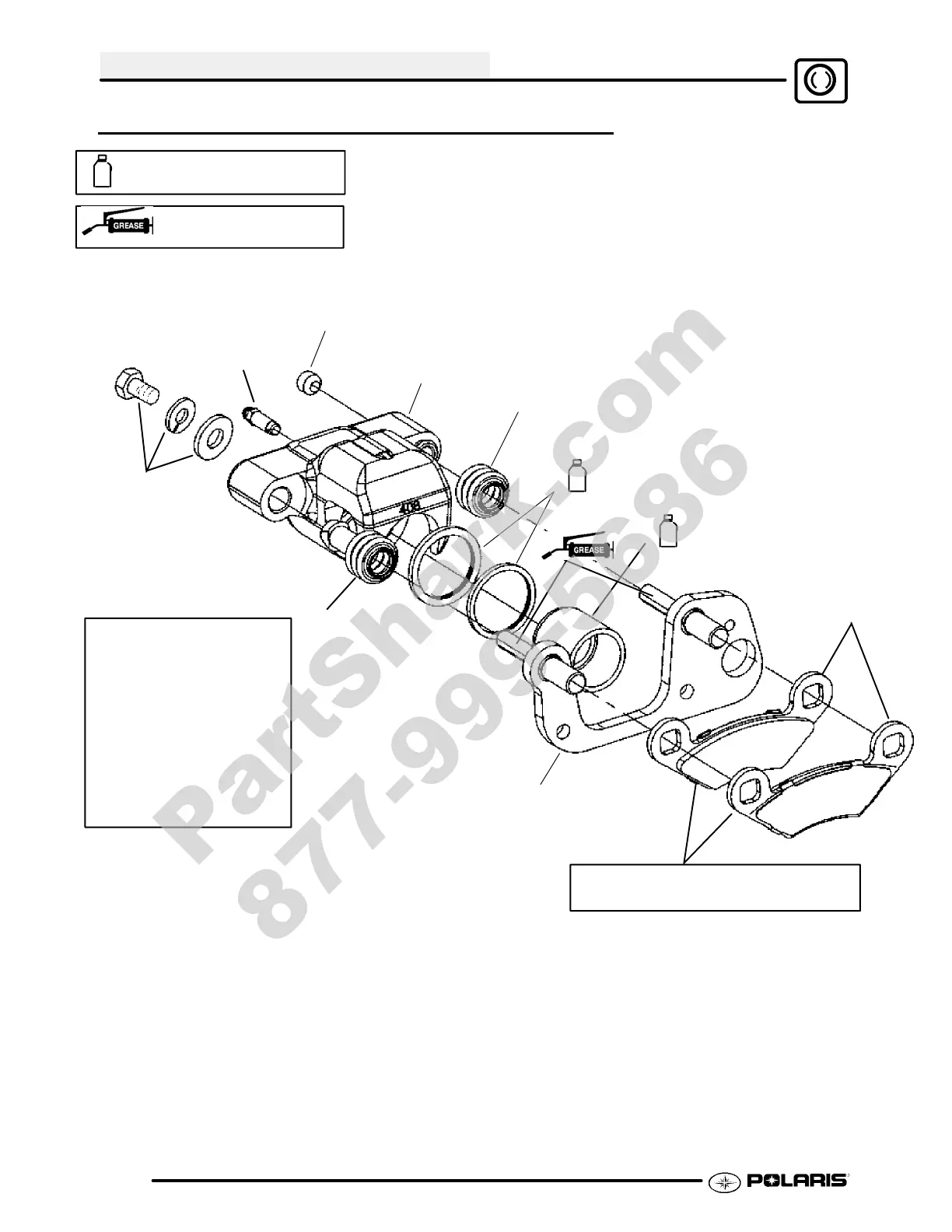

FRONT BRAKE CALIPER EXPLODED VIEW
1
7
2
APPLY POLARIS ALL
PURPOSE GREASE
APPLY POLARIS DOT 4 BRAKE
FLUID TO COMPONENT
4
3
3
35--60 IN. LBS.
(4--6.5 NM)
3
9
8
10
6
4
5
1. Caliper Mount
2. Brake Pads
3. Piston
4. Brake Caliper Body
5. Boot Seal
6. Pin Bushing Seal
7. O--rings
8. Banjo Bolt
9. Bleeder Screw
10. Sock Set
NOTE: IF PADS ARE DIRTY, GREASY, OILY,
OR FLUID SOAKED, REPLACE WITH NEW PADS
