BRAKES
9.23
AUXILIARY BRAKE
REMOVAL / INST
ALL
Brake Pedal Removal / Install
1. To remove the brake pedal:
G Remove the footwell
G Remove the cotter key that secures
the brake pedal
G Removethe washers, bushings, and
tension spring
2. Reverse the steps for installation, use a new
cotter key during installation.
Rear Brake Master Cylinder Removal /
Install
1. If necessary, remove the rear brake line from the
mastercylinder. Useasuitablecontainertocatch
the brake fluid. Dispose of brake fluid properly.
2. Removethetwo boltsthat securethe rear master
cylinder to the brake mount plate. Replace parts
as needed.
3. To install the rear brake master cylinder , mount
the master cylinder to themount plate and torque
bolts to 8 ft.lbs. (11 Nm).
4. Reinstall the brake line and torque the banjo bolt
to 15 ft.lbs. (21 Nm).

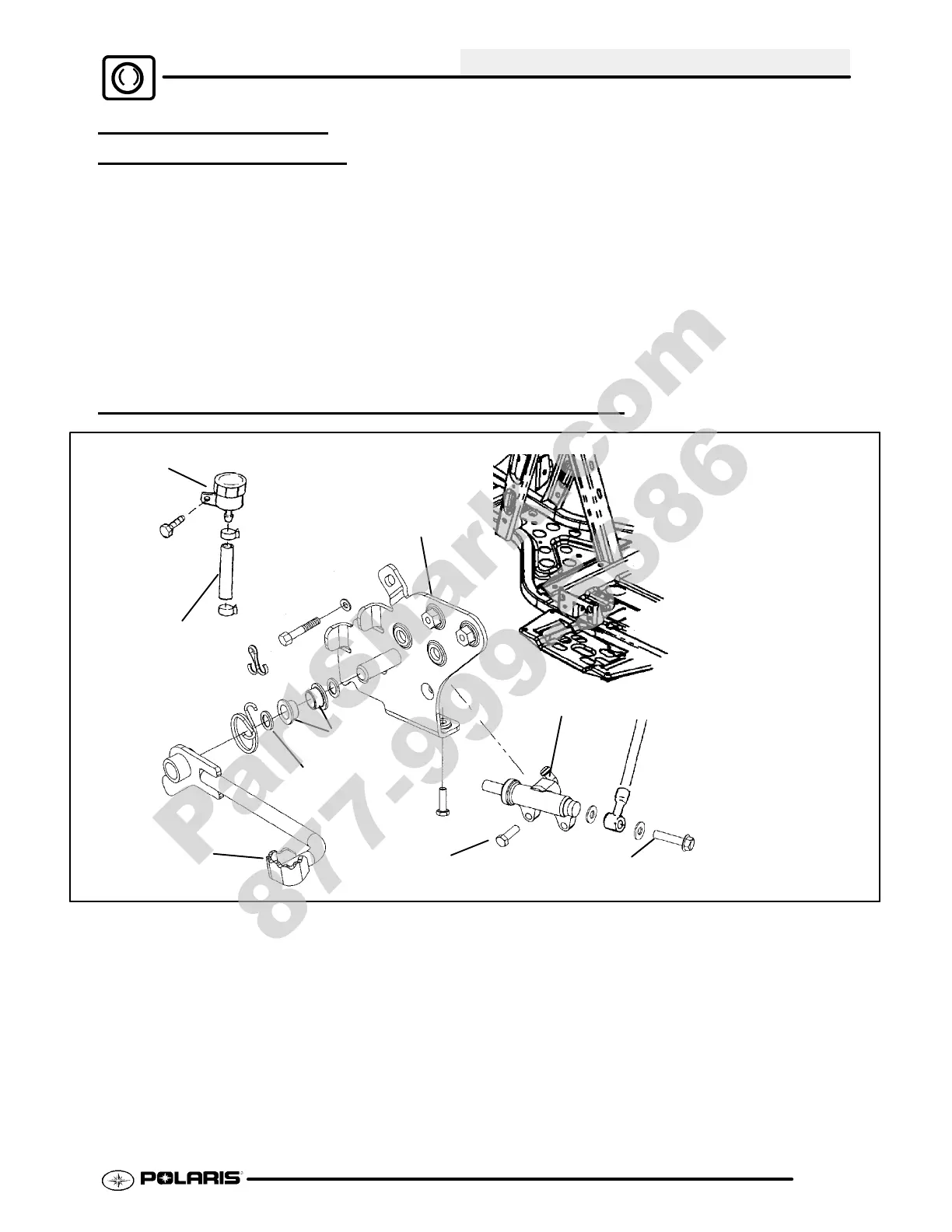

AUXILIARY MASTER CYLINDER ASSEMBLY
Brake Reservoir
Foot Brake Line
Foot Pedal
W ashers
Bushings
Mount Plate
Auxiliary
Master Cylinder
MC Bolts
15 ft.lbs.
(21 Nm)
8 ft.lbs.
(11 Nm)
