MAINTENANCE
2.30
Never allow battery acid to contact the drive chain.
Service Limit:
1/4″ (6mm)
Drive Chain Lubricant:
Polaris O-Ring Chain Lubricant
(PN 2872073)

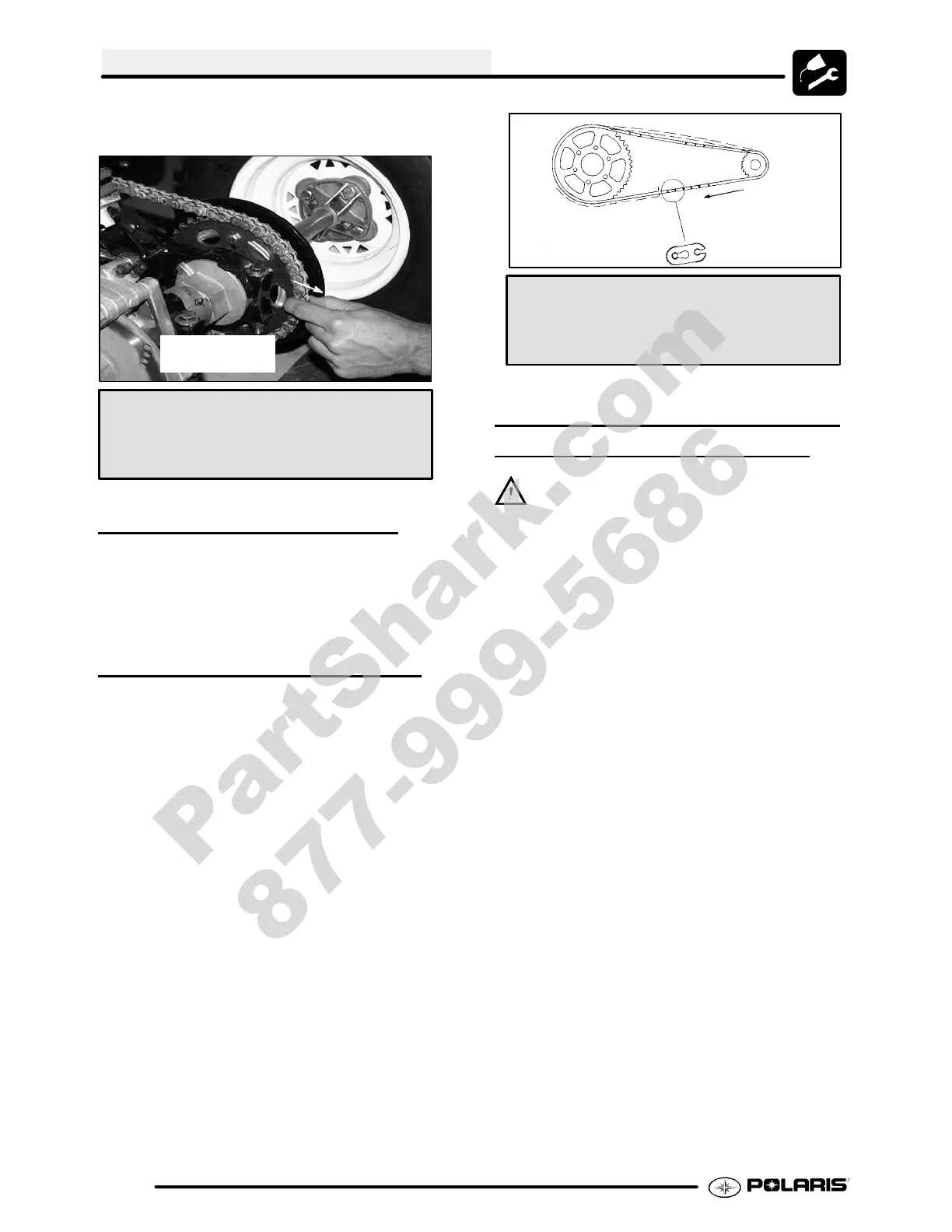

SPROCKET INSPECTION
Inspect the sprocket for worn, broken or bent teeth.
To check for wear, pull outward on the chain as
shown. Replacesprocket ifchainmovementexceeds
1/4″ (.6 cm).
DRIVE CHAIN INSPECTION
The chain must be replaced when it reaches 3%
elongation.
1. Stretch the chain tightly in a straight line.
2. Measurealengthoftwentypitches(pins) frompin
center to pin center, and compare to the
specification. Replace the chain if the length
exceeds the wear limit.
3. When replacing or reinstalling drive chain, install
theclosedendofthesplicelinkclipasshown,with
the closed end leading in forward operation.
Proper
Splicelink Clip
Opening
Position
Drive Chain Wear Limit--20 Pitch Length:
Std: 12.5″ (32 cm)
Wear Limit: 12.875″ (32.7 cm)
DRIVE CHAIN ADJUSTMENT,
CONCENTRIC
SWINGARM
CAUTION: Never adjust or operate the vehicle
with the rear drive chain too loose or too tight as
severe damage to the transmission and drive
components can result.
Break-In: Itisextremelyimportantto maintainproper
chain tension to ensure the best possible chain life.
Thereis a chain break-in period of approximately 100
miles or two (2) tanks of fuel. During this time chain
tension should be watched very closely and loads to
the chain should be kept light.
Checking Deflection: Inspect chain deflection by
slowly moving the ATV forwardso any slack that may
have previously been on the under part of the chain
is now on the top side of the chain. The bottom part
of the chain should be taught during inspection.
Measure the chain deflection as shown in the
diagram. Deflection should be approximately 3/8
in. (10 mm).
After inspection, again slowly move the ATV forward
until all the chain slack is on the top side of the chain
and inspect the deflection. Repeat this procedure
several times to check different spots on the chain.
The chain is correctly adjusted when the tightest
portion of the chain itself has approximately 3/8 in.,
(10 mm) ofdeflection. It’ sacommoncharacteristicof
