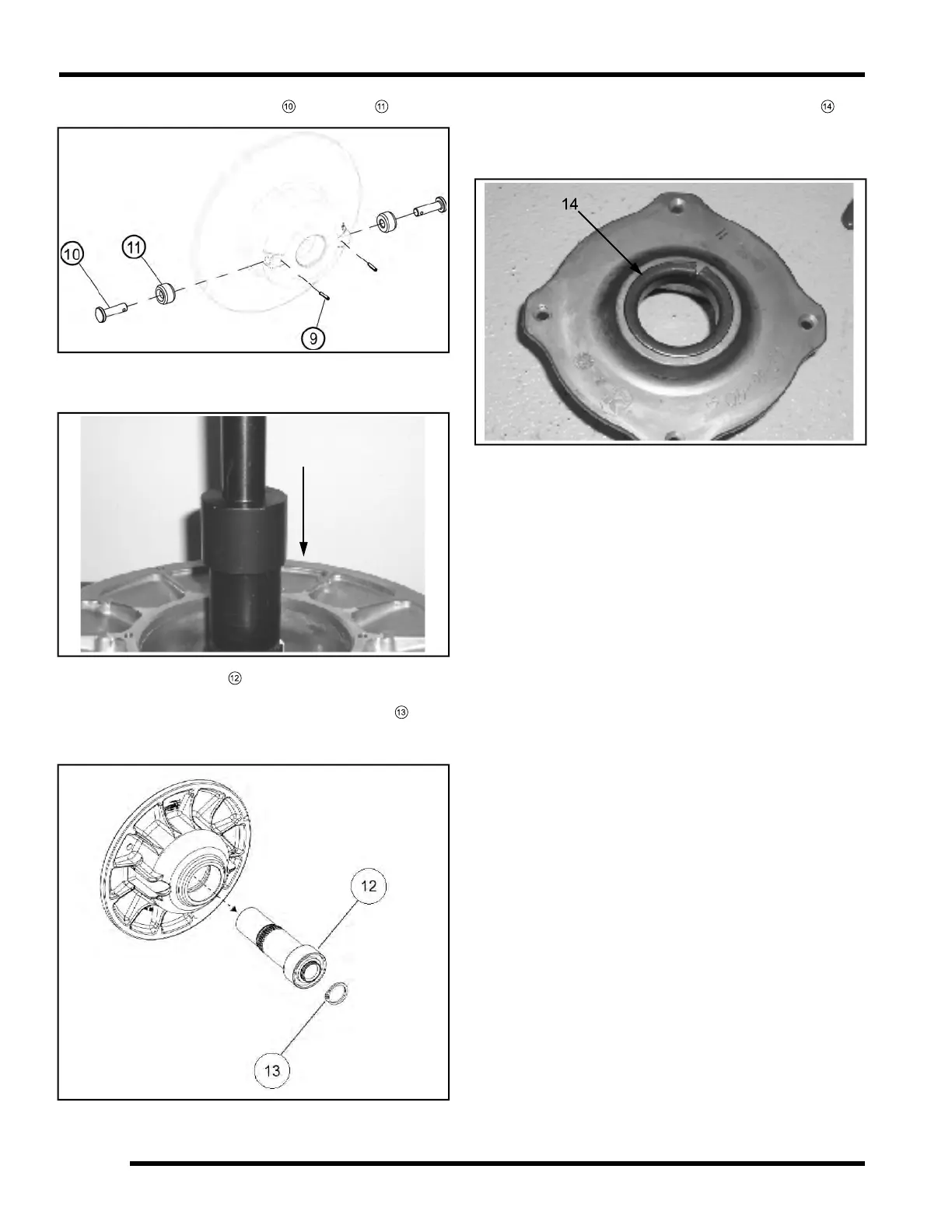

11. Pull out the clutch roller pins

and rollers

12. Press the shaft and bearing out of the outer sheave

using an arbor press.

13. Inspect the bearing

for wear. Spin the bearing, if

the bearing does not spin smoothly, replace it. To

replace the bearing, remove the snap ring

from

the end of the shaft and press the bearing off the

shaft.

14. Inspect the cam (helix) assembly bushing

for

wear. If the bushing is worn or the shaft does not fit

snug into the bushing, replace the cam (helix)

assembly.

15. Inspect the sheaves for excessive wear or damage.

PVT SYSTEM
