power automation PA 8000 User Manual

Property Value Unit
Max. measurement
input voltage
27 v
Measurement input
current (at 24 V)
7 mA
Measurement input
impedance
3300 Ω
Measurement oper-
ating voltage OFF
10.8 V DC max.
Measurement oper-
ating voltage ON
11 V DC min.
Measurement input
ON delay
300 ns
Measurement input
OFF delay
100 ns
Measurement isola-
tion
Opto coupler
Interface type digital input 24 V
Probe wiring
When the probe input is used in an application,
each input of all used axes must be wired in par-
allel.

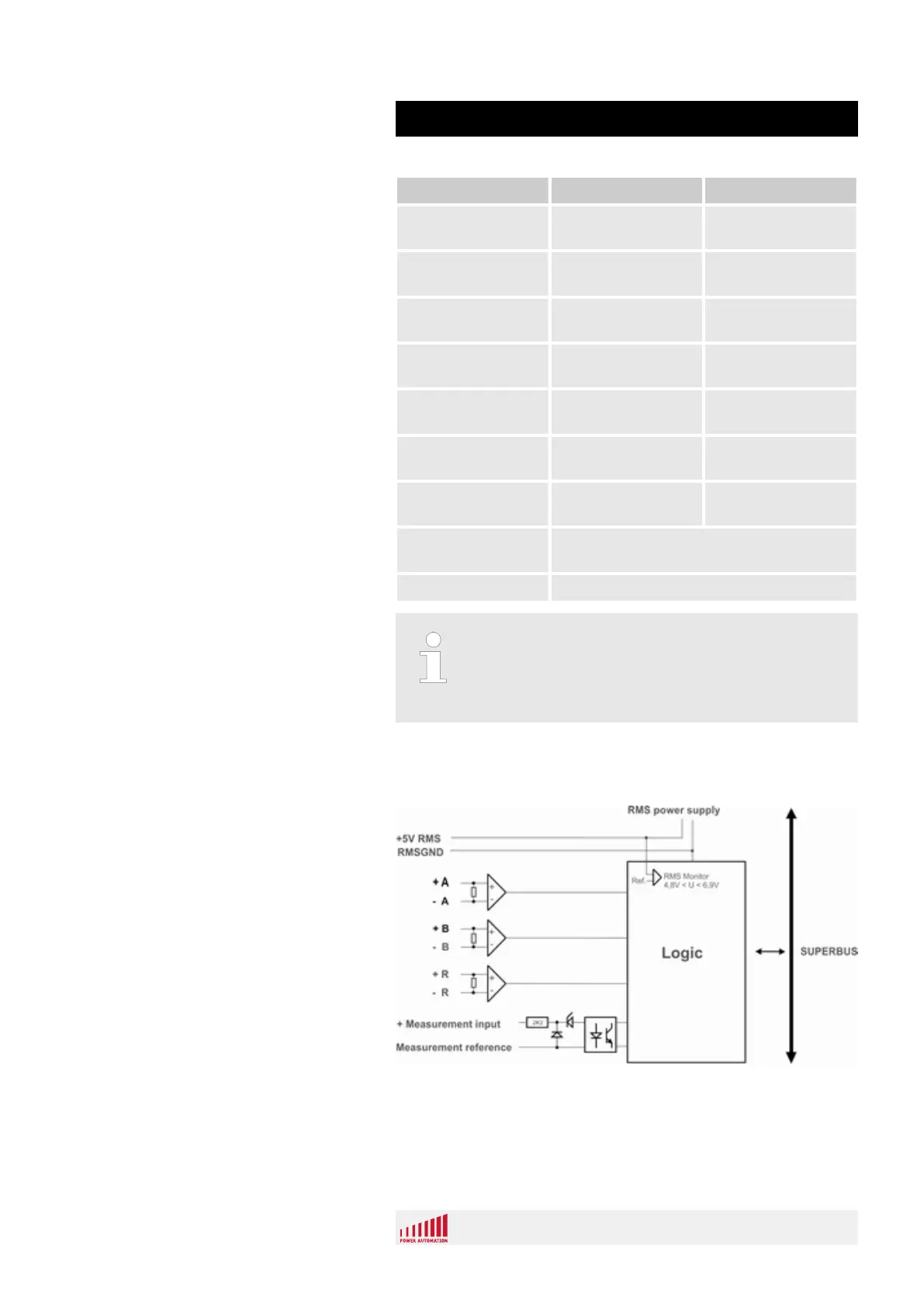

The following figure (Fig. 81) shows how the axis measurement
inputs are realized on each PAMIO 2ENC4A module.
Fig. 81: RMS input equivalent schematic
Probe Input
Input Equivalent Schematic
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 101
