Each module has a 5 pin connector (X30) with the following pin
assignment (see Fig. 25).

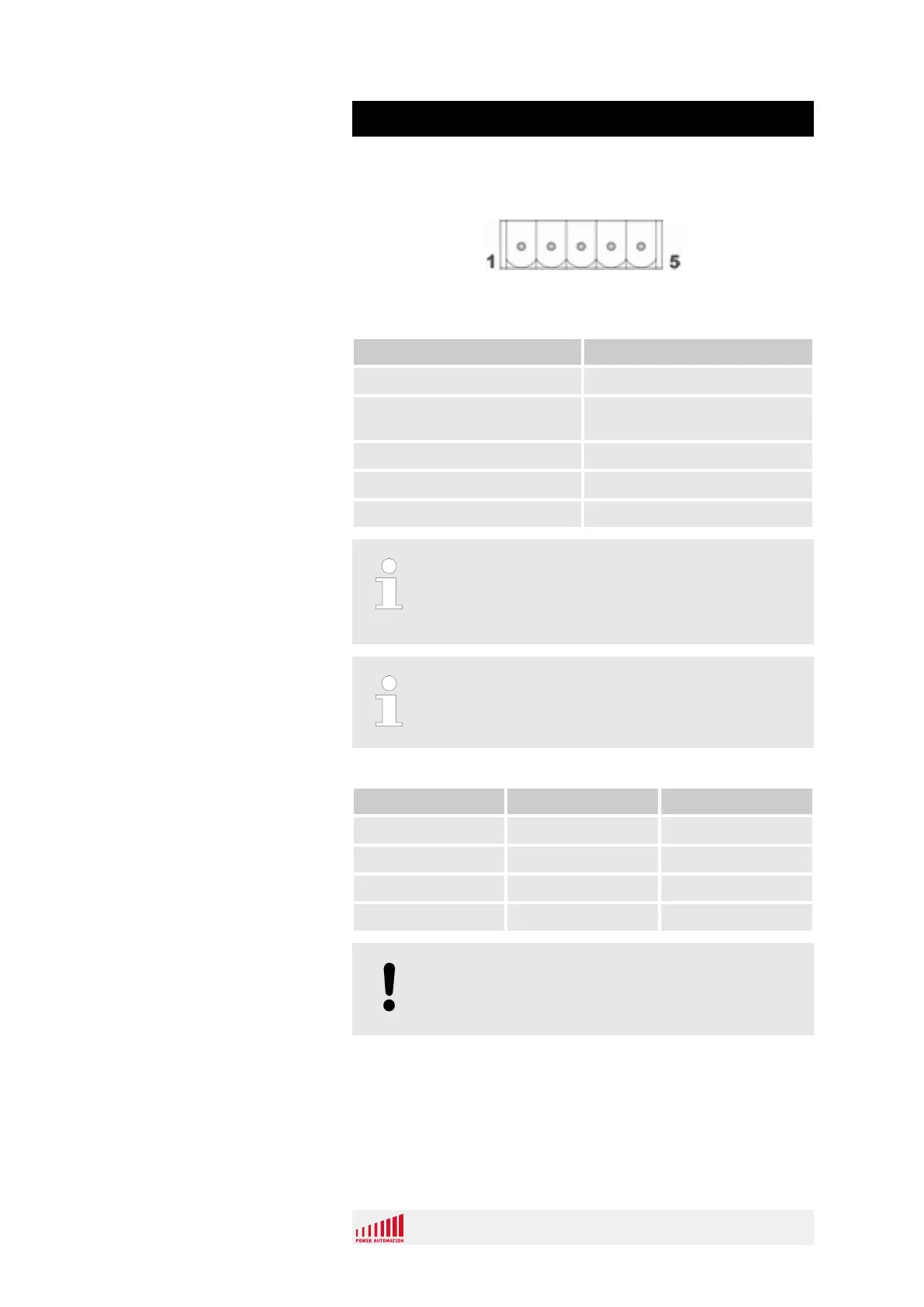

Fig. 25: X30 – Power supply pins
Pin Assignment
Pin 1 Used depending on model
Pin 2 + 24 V DC power supply for
on-board logic
Pin 3 0 V
Pin 4 Used depending on model
Pin 5 Used depending on model
Depending on the modules, the pins 1, 4 and 5 of
this connector can be used for other power supply
inputs. Refer to individual characteristics of the
model!
The 0V connection is always common to the dif-
ferent power supplies that have to be applied on
this connector.
Property Value Unit
Operating voltage +24 V DC
Tolerances -15 / +12.5 %
Effective range 20.4 - 27.0 V DC
Reference Pin 3 (0 V)
NOTICE!
Remember that every PAMIO module must be sup-
plied with 24V DC separately!
Technical Specifications
PA 8000 PAMIO
PAMIO Components
12.01.2017 | 48
