power automation PA 8000 User Manual

Property Value Unit
Number of inputs 24
Maximum DC
voltage
27 V DC
Input current at 24V
(typical)
7 mA
Power dissipation at
24V per input
0.17 W
Input impedance 2.2 kΩ
Operating DC
voltage OFF
5 V max
Operating DC
voltage ON
11 V min
Input ON delay (typ-
ical)
5 μs
Input OFF delay
(typical)
35 μs
Isolation By opto-coupler
Input ON display LED
External connection 1 block per byte

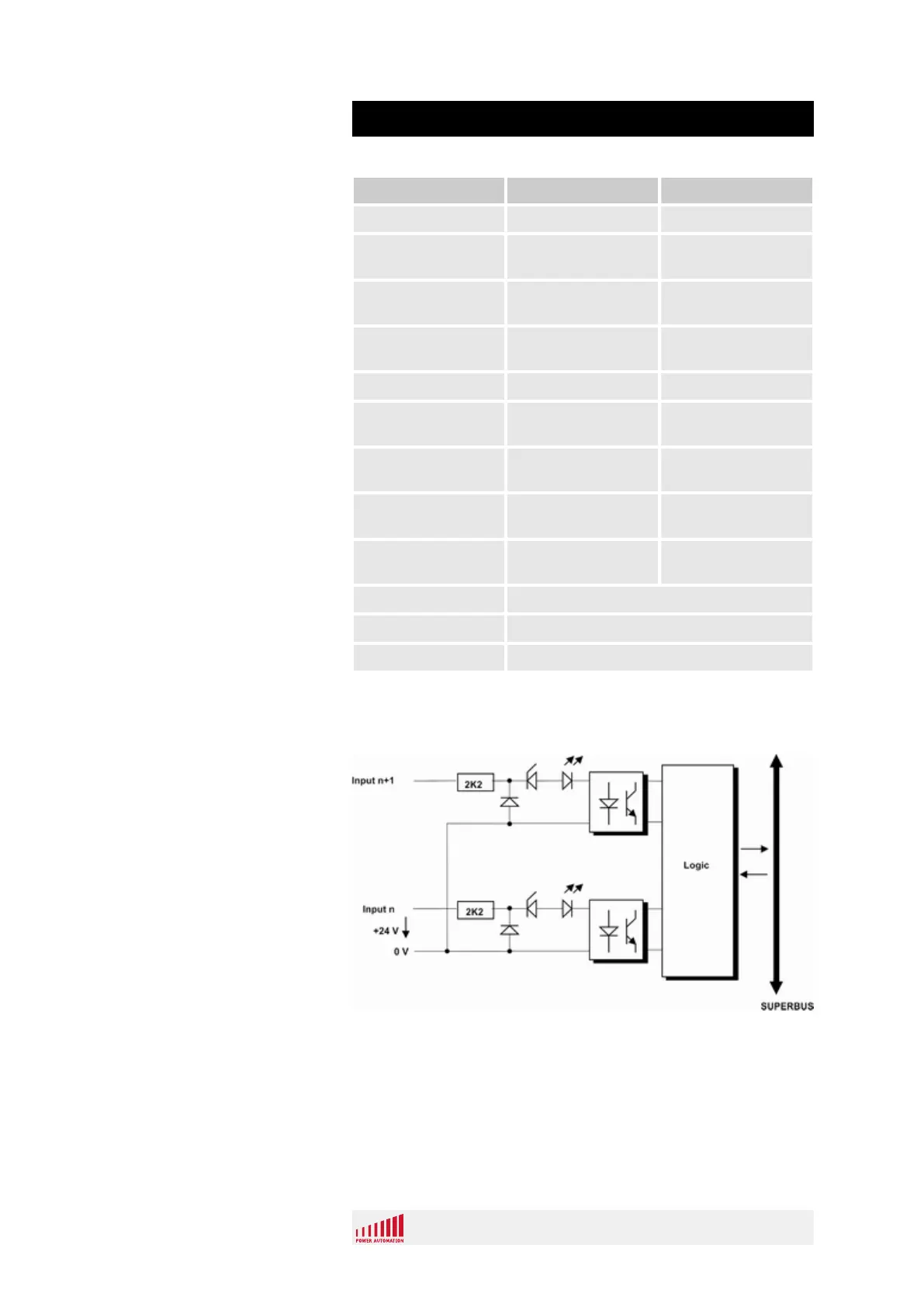

The following figure (Fig. 31) shows how the inputs are realized on
each PAMIO 2416 module.
Fig. 31: Inputs equivalent schematic
Input Characteristics
Input Schematic
PA 8000 PAMIO
PAMIO Components
