45-3
Servicing Vee Belts
EN
9. It is important to align the pulleys, otherwise the
belt anks will wear quickly.
10. Ensure axis are parallel when viewed from all
planes.

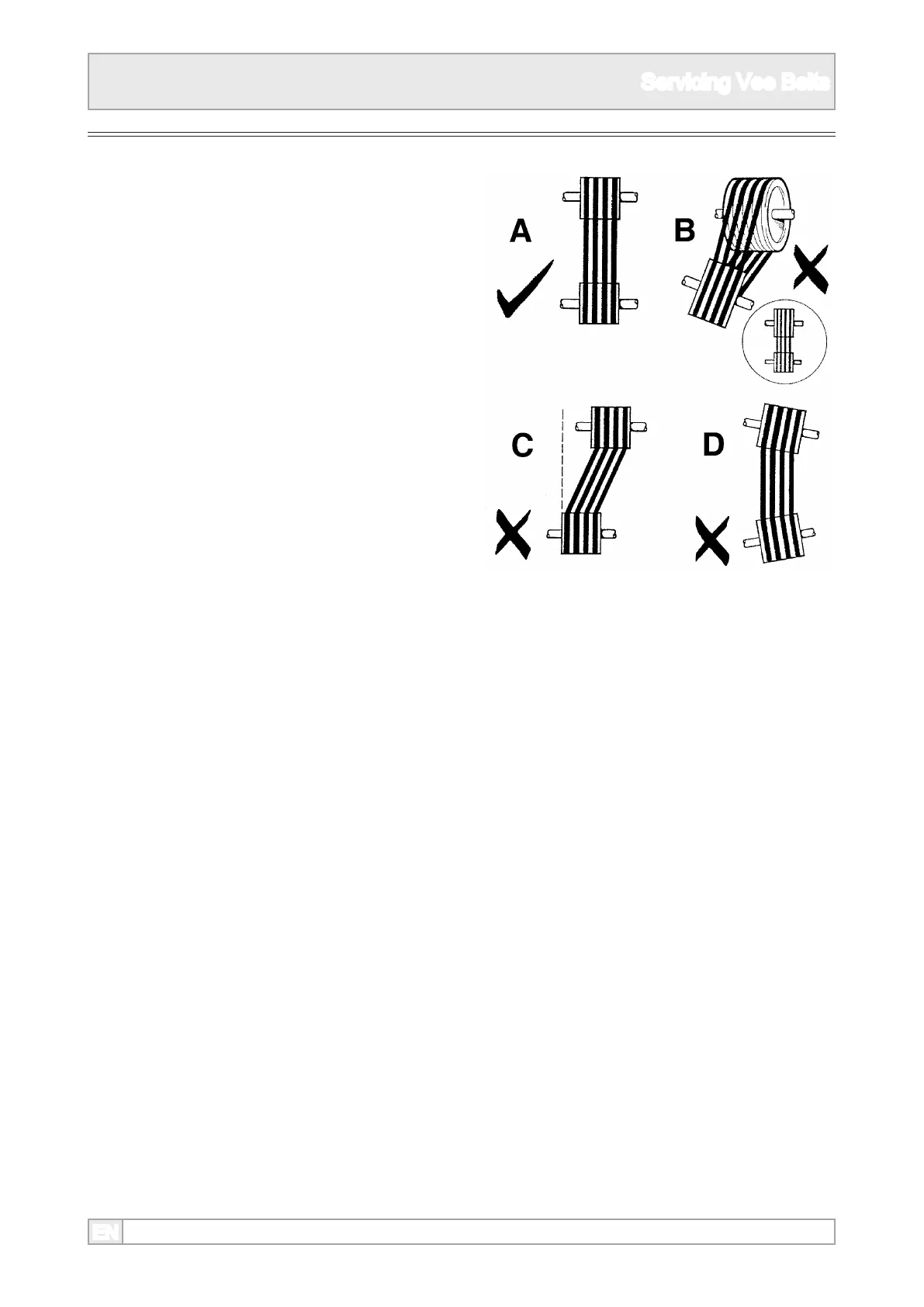

Alignment
A - Correct installation, both shafts and pulleys
are parallel and in alignment.
B - Incorrect, shafts are parallel from above but
not from end view.
C - Incorrect, shafts are parallel and in
alignment but pulleys are not in alignment.
D - Incorrect, shafts are not parallel to one
another when seen from above.
