AM0009-1

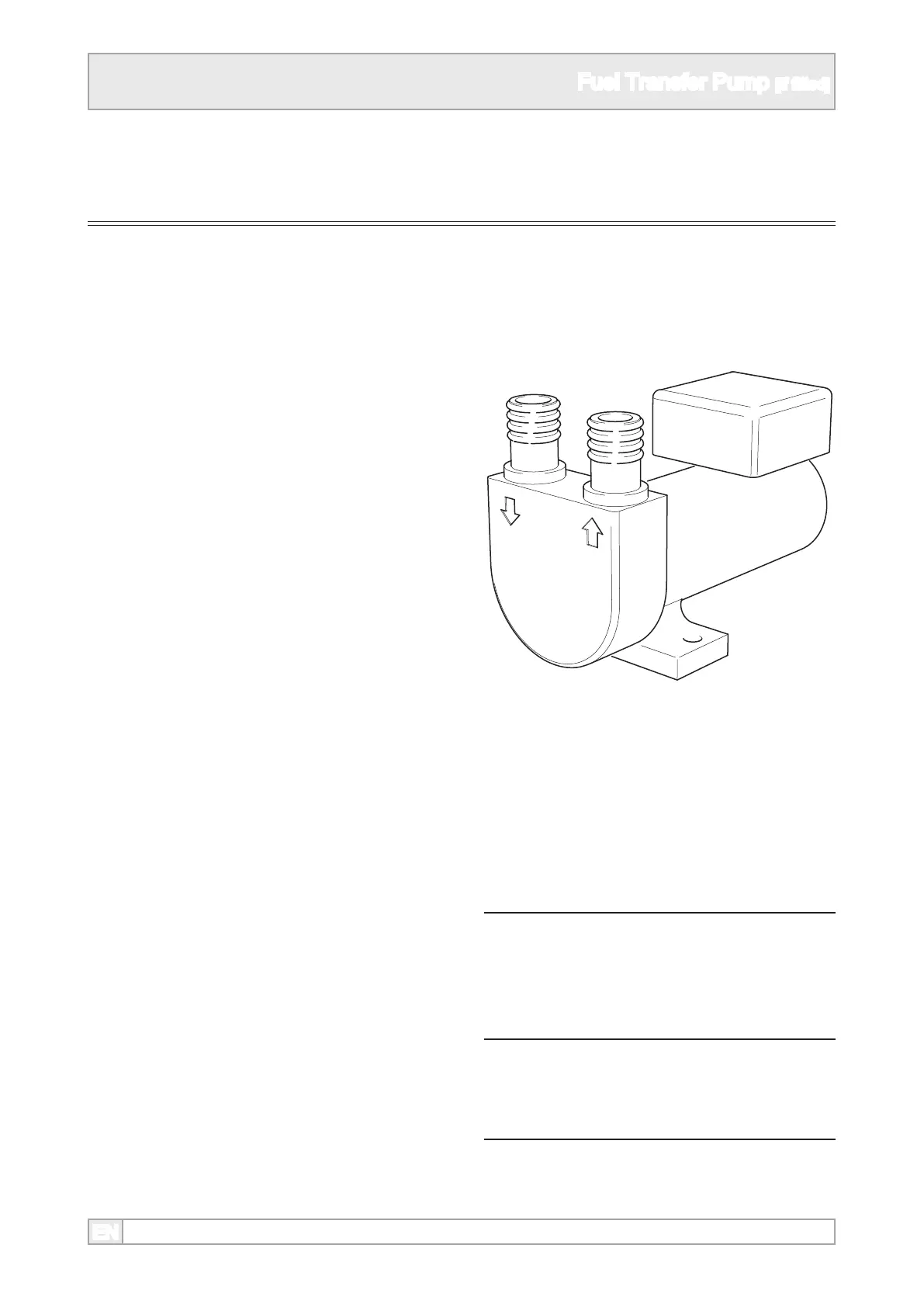

Fuel Transfer Pump [if 󰘰tted]
EN
Addendum to User Manual
Operating Instructions
Introduction and Speci󰘰cation
1. This is available as originally 󰘰tted equipment
installed at the time of machine manufacture.
2. The pump is for the purpose of transferring
diesel fuel from a fuel container positioned at
ground level alongside the machine fuel tank.
3. The pump is permanently mounted in a suitable
position on the machine in the vicinity of the
engine and is electrically driven from a 24v DC
supply. The unit is 󰘰tted with an integral on/o󰘯
switch.
4. Also supplied as part of the kit are lengths of
plain hose 25mm (1in) bore for suction [with
strainer] and delivery.
5. The 2573-7002 pump is suitable for equipment
with diesel fuel tanks between 200 and 500
litres (53 and 132 US gallons). Flow is 50 l/min
(13.2 US gal/min)
6. The 2573-7014 pump is suitable for equipment
with diesel fuel tanks between 500 and 1000
litres (132 and 264 US gallons). Flow is 100 l/
min (26.4 US gal/min)
7. Duty is continuous up to 40°C (104°F) ambient,
self priming dry up to 3m (9.8 ft) head.
Maximum head 10m (32.8 ft).
n DANGER
Do not use the fuel transfer pump for any
other purpose than 󰘰lling the diesel fuel
tank.
Observe the safety instructions in these
instructions plus safety and information
given in the re-fuelling section of the
machine user manual.
