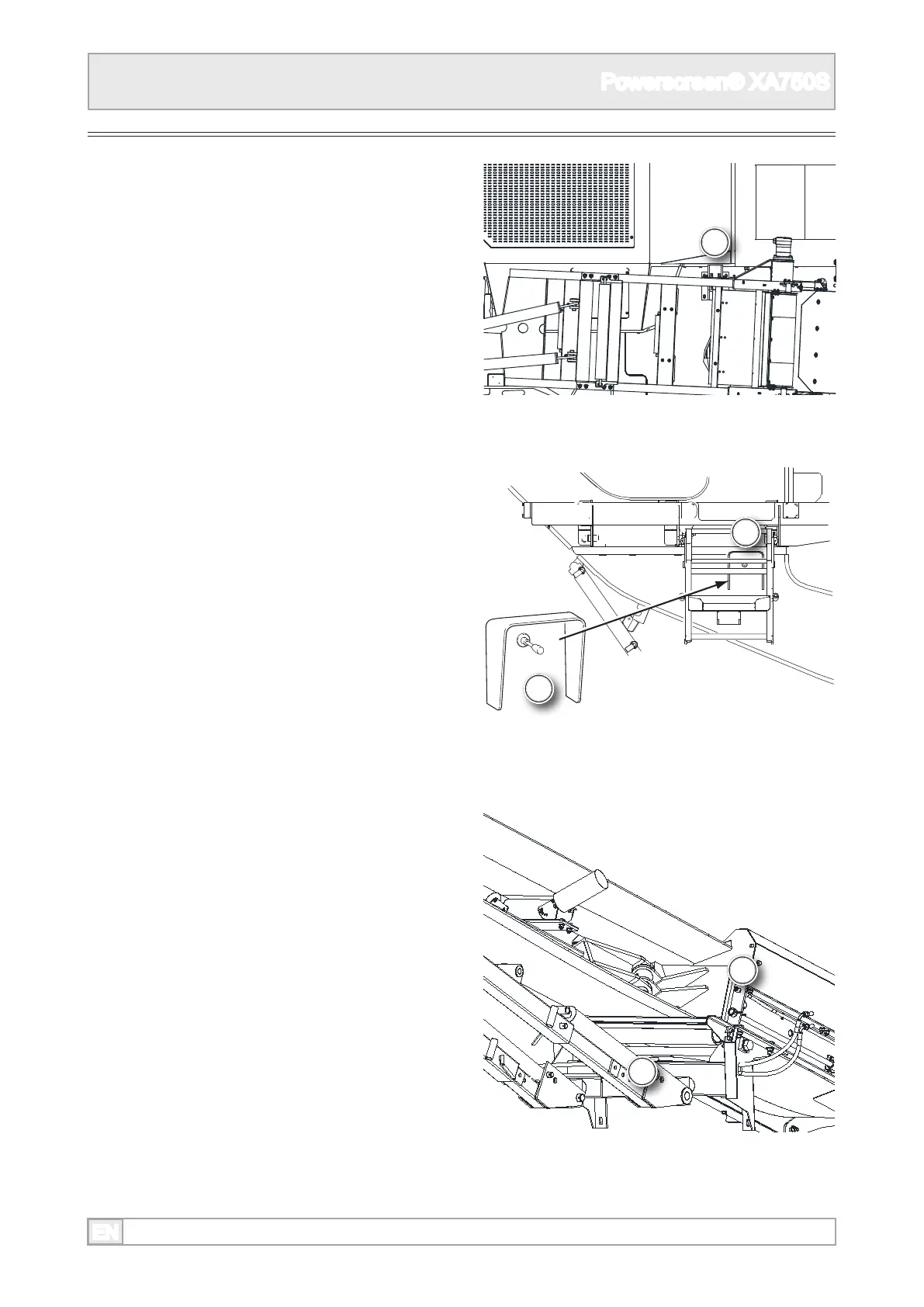

Dirt Conveyor [if 󰘰tted]
1. Remove the transportation securing bar and pin.
2. Replace bar and pin to prevent their loss, after
positioning the dirt conveyor.
3. Dirt conveyor control is positioned on the
chassis.
4. Operate lever to fully unfolded the dirt conveyor
into the working position.
5. When unfolding the dirt conveyor observe the
conveyor belt, particularly in the pivot point
area. If any folding or tucking of the belt
begins to occur, Stop folding the conveyor and
carefully pull the tuck/fold out of the belt and
then resume the folding process.
6. Securely 󰘰t the end plate.
7. Fit the roller and roller nip guard securely.
