Servicing of Tracks

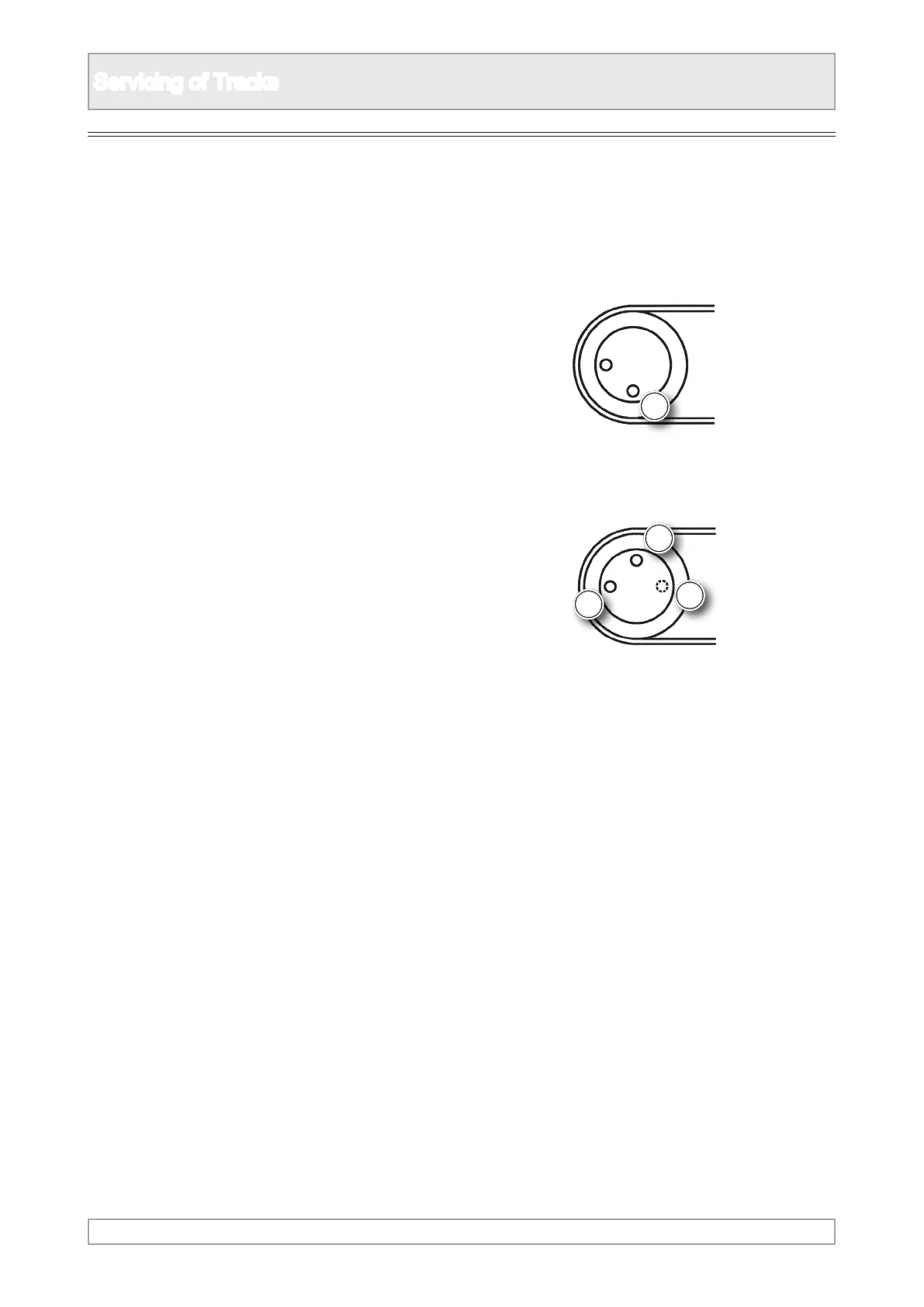

Type A
Refer to these instruction for servicing if the casing
has two plugs and appears as shown.
1. Observe all safety warnings.
2. Rotate the gearbox housing until one of the
plugs is at the lowest point.
3. Unscrew both plugs
4. Discharge the oil into a container for correct
disposal.
5. To rell, rotate the gearbox housing so that one
plug is at the top position and the other plug is
as shown.
7. Clean plugs using a clean non-ammable
solvent.
8. Apply thread sealant to the plugs and ret.
9. Repeat procedure on the other side.
Drive Oil Draining & Filling
Alternative track motor drive and gearbox may be
tted. Refer to illustrations to identify if type A,
B, C or D is tted.
6. Fill through upper hole until the oil ows from
lower hole. Use only the correct oil, refer to
servicing - lubrication.
Note:- Over lling the nal drive will cause the
travel motor seal to allow hydraulic uid or
water to enter and contaminate the drive
