Servicing of Tracks
EN
Type B
For identication, the letter V has been added to
the end of the track serial number.

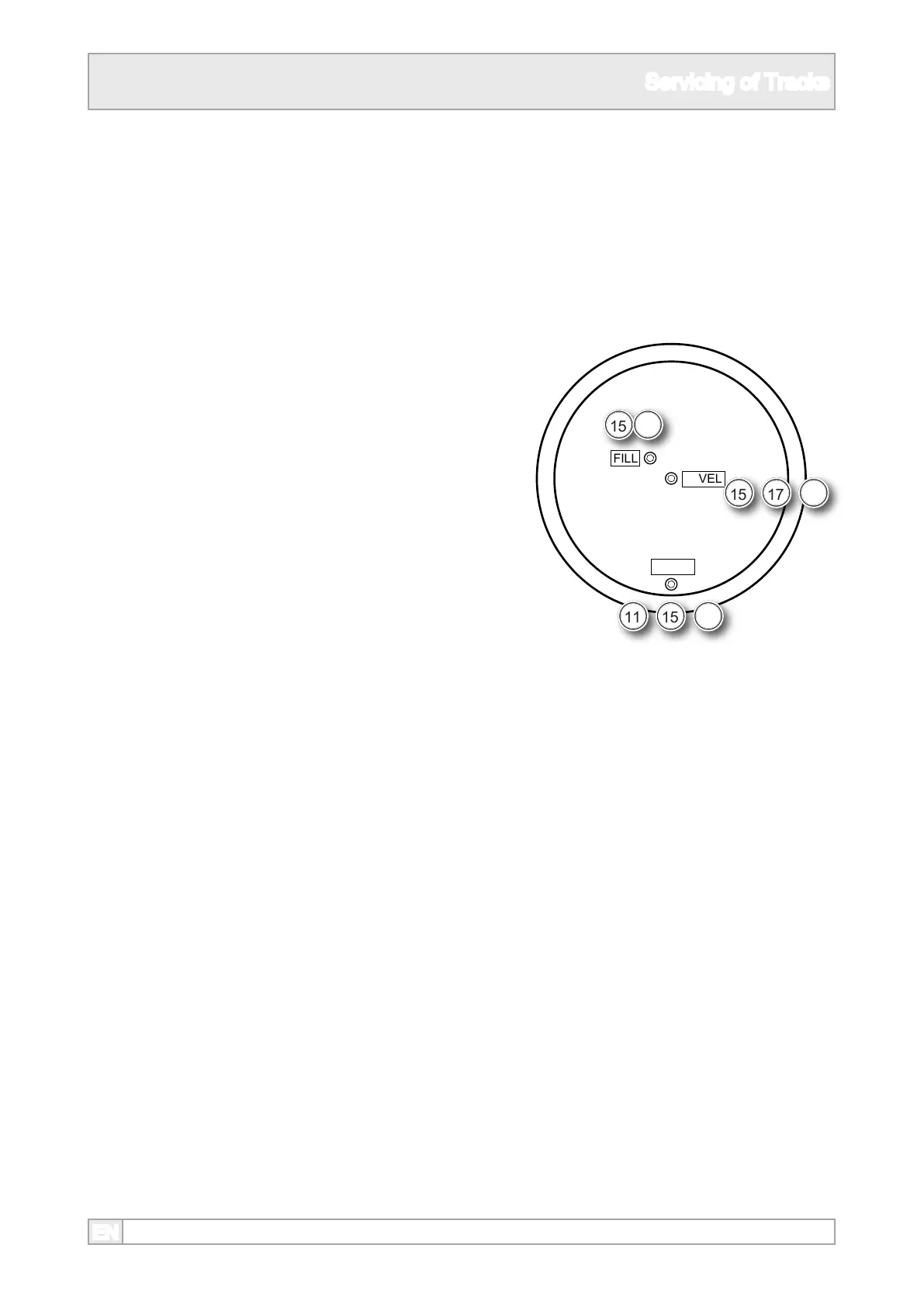

Refer to these instruction for servicing if the casing
has three plugs and appears as shown.
10. Observe all safety warnings.
11. Drive the track to position the motor and
gearbox as shown with the drain positioned
lowest.
12. The plant should be positioned horizontally
side to side.
13. Close down the plant and implement the
lockout procedure.
14. Place a suitable container in position to collect
the old oil.
15. Remove the lling, level and drain plugs and
drain the old oil, looking for metal particles
indicating component wear.
16. Re-t drain plug, taking care not to damage the
seal.
17. Add new oil until it begins to overow through
the centre level hole.
18. Use only the correct oil, refer to servicing -
lubrication.
19. Do not mix dierent types or brands of oil.
20. Re-t level and ll plugs, taking care not to
damage the seals.
To Next Page
