A 18119mm
B 5440mm
C 4017mm
D 4170mm
E 9190mm
F 3966mm
G 8906mm
H 4082mm
J 3646mm
K 500mm
Speció°˜°cation and Plant Information

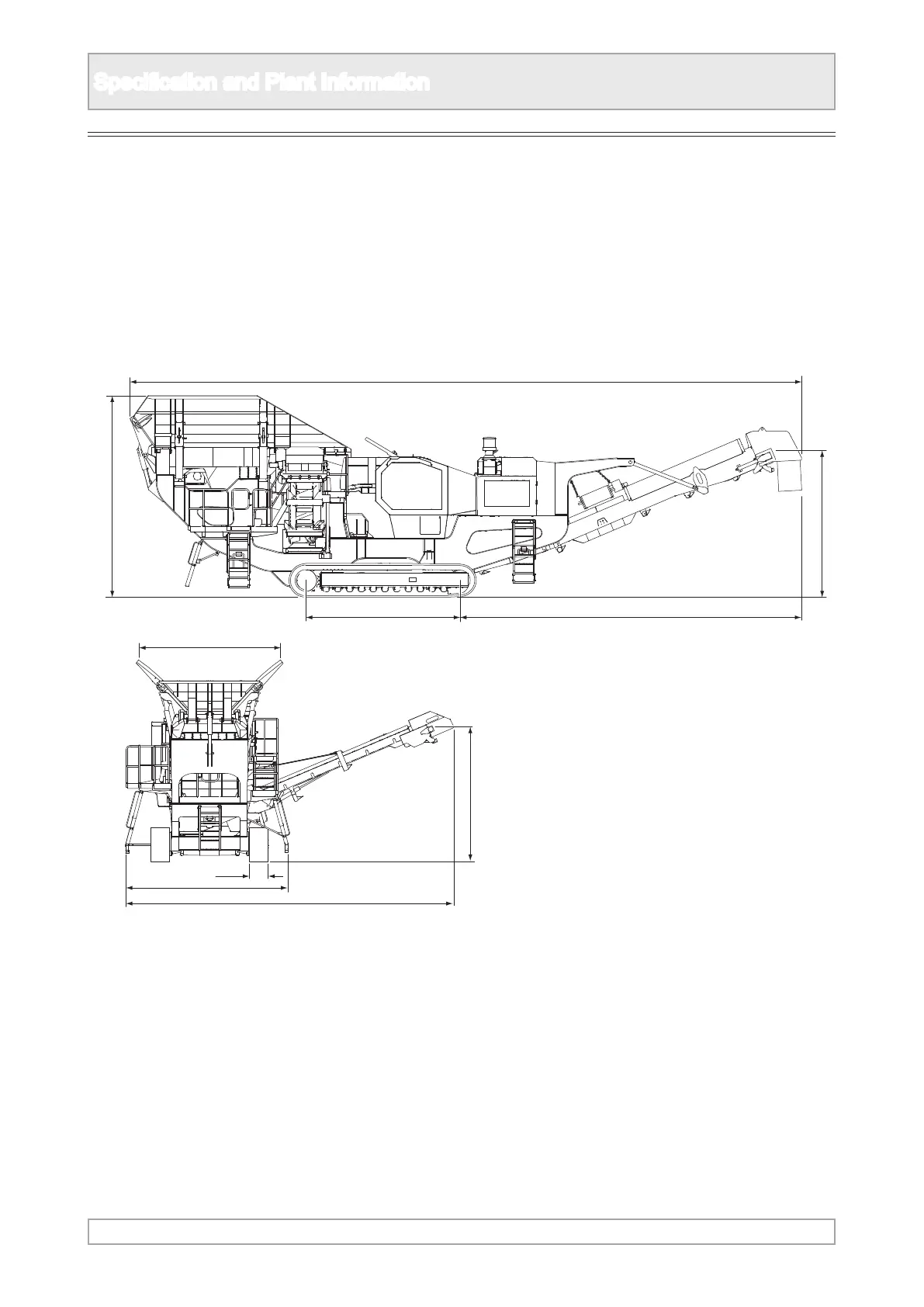

Dimensions
Overall Transport Dimensions
[All conveyors, chute and grid in transport
positions].
Length: 18626mm
Width: 3408mm
Height: 4320mm
Track width: 3160mm
Working Dimensions
All dimensions are in millimetres.
Feed hopper raised and product conveyor fully raised
Approximate dimensions are in (Feet - Inches).
Overall Transport Dimensions
[All conveyors, chute and grid in transport
positions].
Length: (61ft-1in)
Width: (11ft-2in)
Height: (14ft-2in)
Track width: (10ft-4in)
A (59ft-5in)
B (17ft-10in)
C (13ft-2in)
D (13ft-8in)
E (30ft 2in)
F (13ft)
G (29ft-1in)
H (13ft-5in)
J (11ft-11in)
K (1ft-8in)
