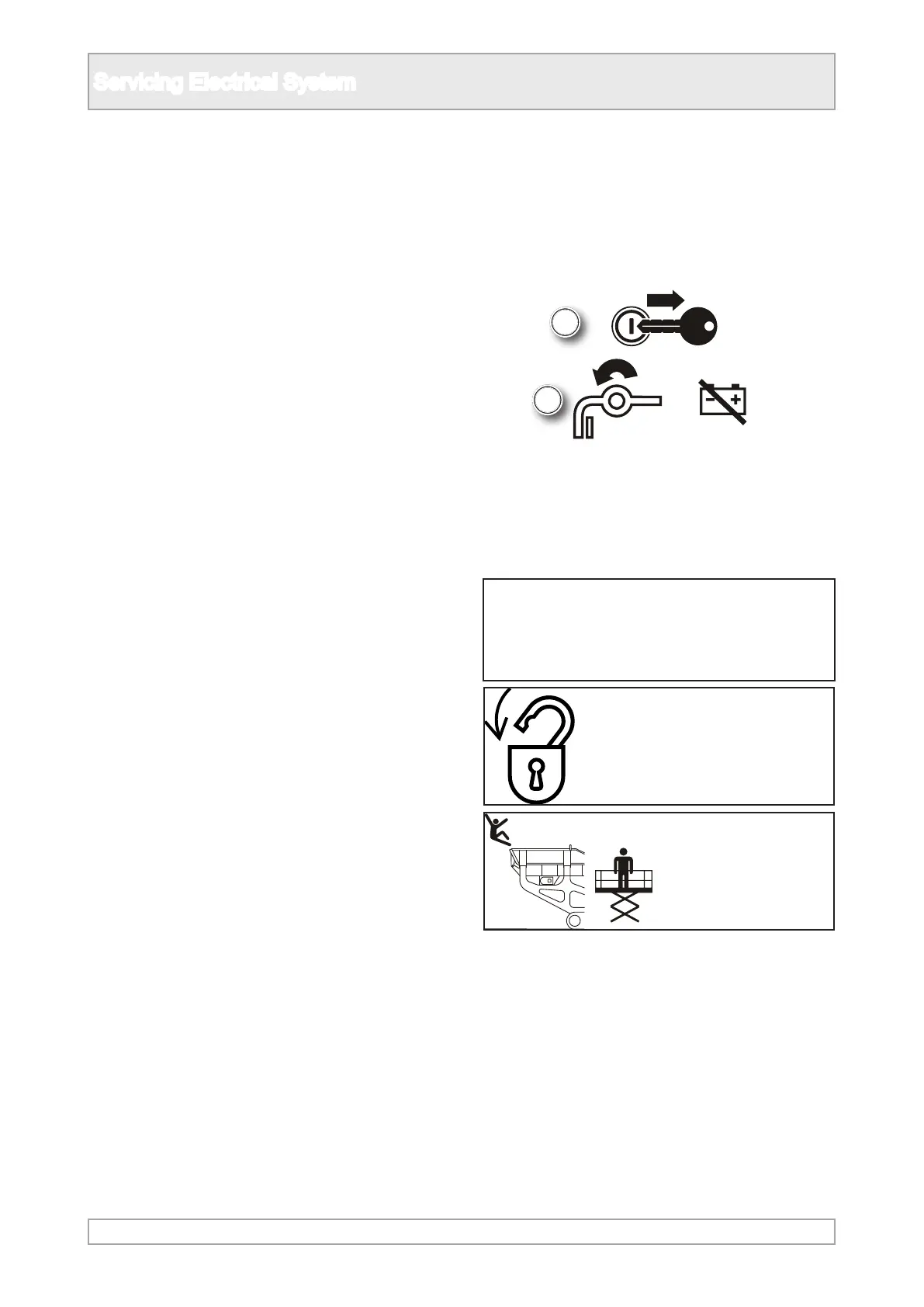

Servicing Electrical System
n WARNING
Refer to Safety Notices Section for relevant
warning and procedure
LOCKOUT
PLANT
FALLING
HAZARD
14. Stop the plant and remove the ignition key.
15. Set the battery disconnect switch to ‘0’ and
lockout.
Automotive Battery Replacement
13. Batteries should only be replaced by a
competent person.
18. On some plants it is necessary for a suitable
working platform to be used.
19. The plant has a negative [-] chassis
connection.
20. Disconnect the cable at the negative [-] battery
terminal rst.
21. Disconnect the positive [+] plant feed cable at
the battery terminal.
22. Disconnect the battery linking cable.
16. Two batteries are used for the plant electrical
system, located near or within the engine
powerpack.
17. Remove fasteners and guard, cover or oor
panel to gain access to the batteries.
