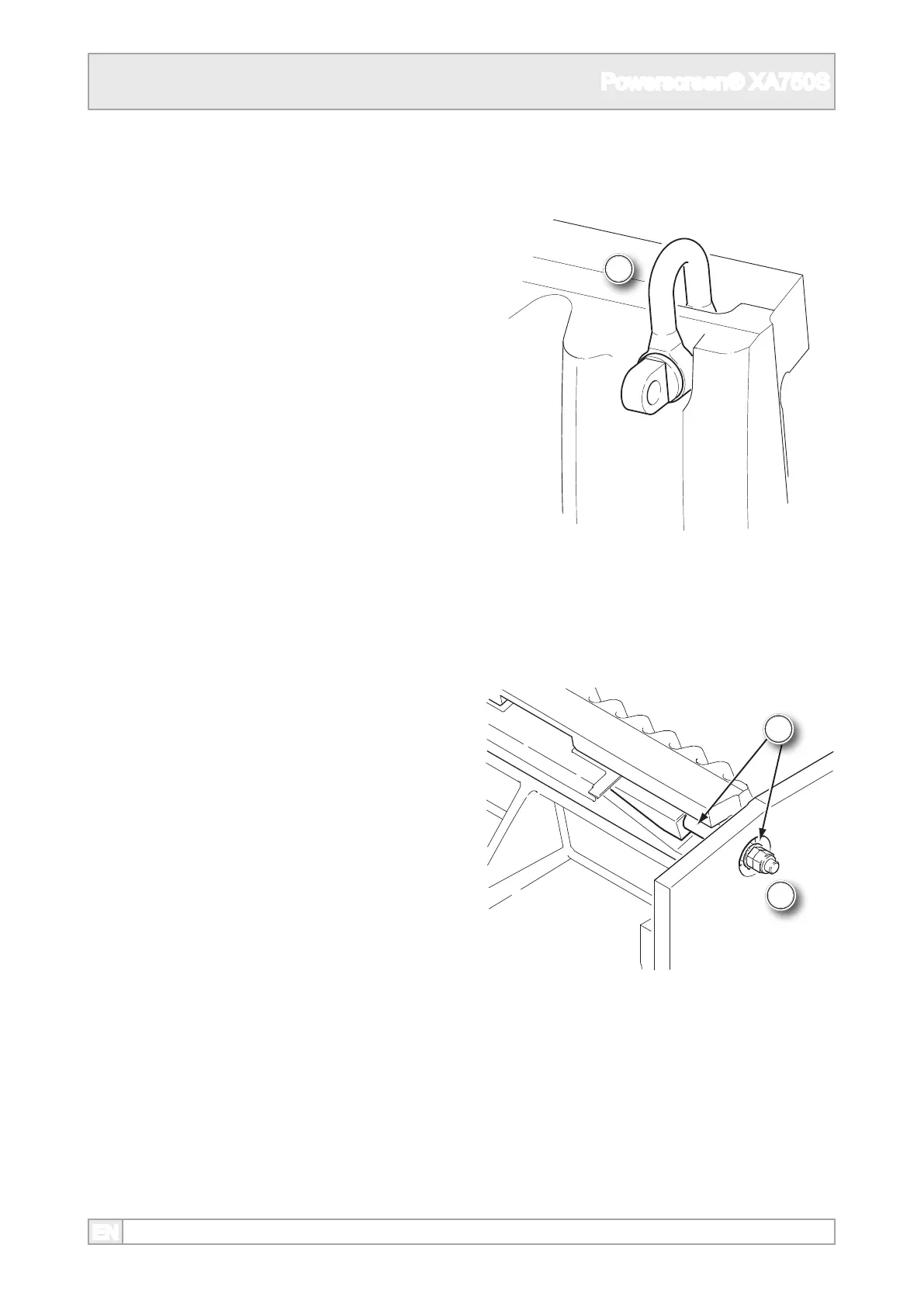

19. Fit suitable lifting shackles to the upper corners
of the jaw.
20. Fix suitable lifting equipment to the shackles
and support the weight using suitable lifting
equipment.
21. Locate the jaw centrally so the hook on base of
the jaw will engage over the jaw holder.
22. Raise the jaw to engage the lower jaw hook
over the full width then slew the top over the
side wedges to fully engage with the jaw holder.
23. Fit the spacer tubes, washers and thin nuts to
each end of the clamping rod.
24. Tighten both nuts equally on the clamping rod
to pull both wedges inward toward each other.
This will locate and lift the jaw into position.
25. Secure the nuts with the locking nuts.
18. Clean and lubricate the sliding faces of the
wedges and bolt threads with an anti-sieze
compound.
