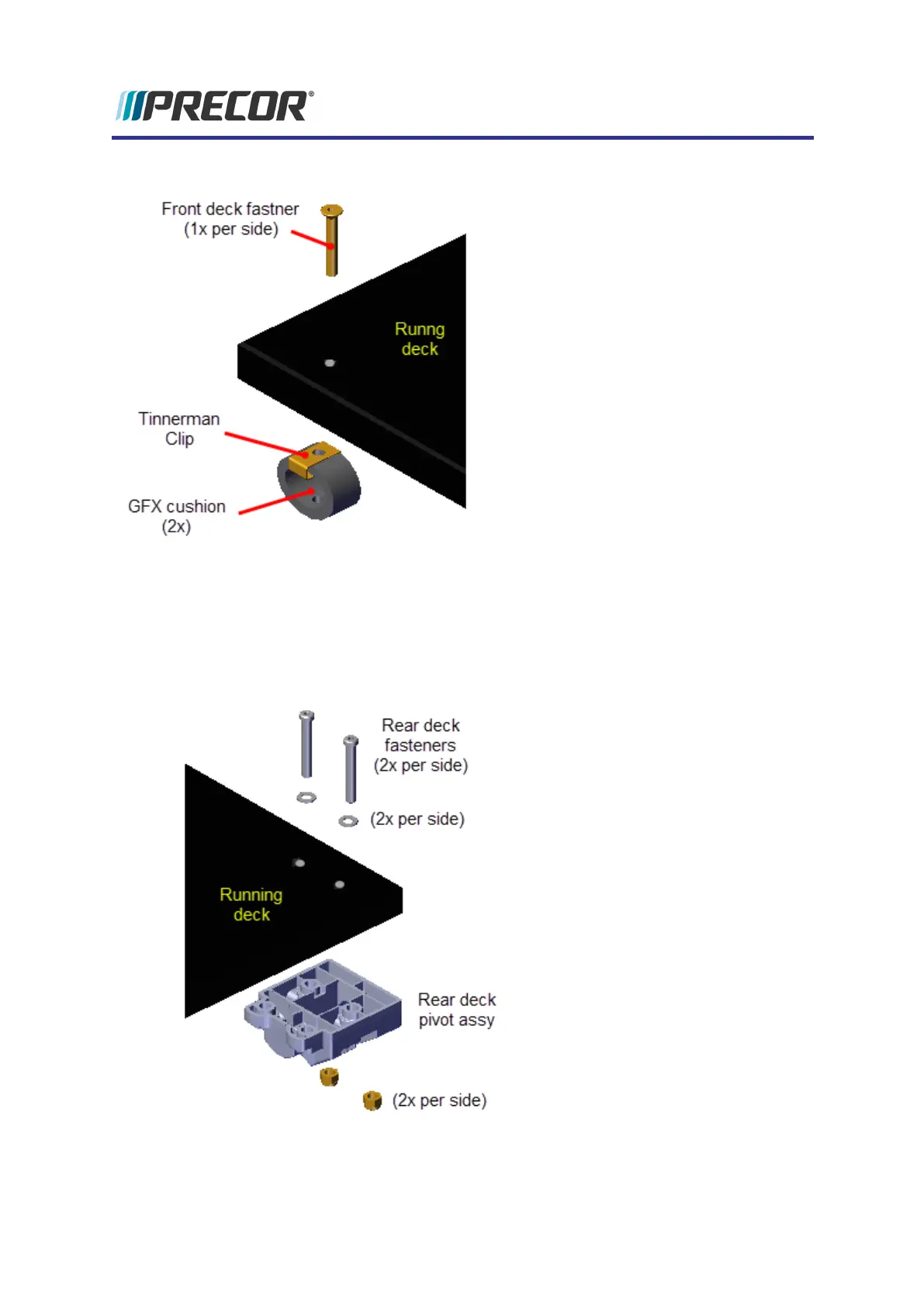

4. Reinstall the four 5/32" hex key bolt and washer rear deck fasteners, torque to 50-55 in-
lbs (5.6-(6.2 Nm).
These fasteners attach to the left and right rear deck pivot assemblies. The 1/2" fastener
nuts are press fit into the bottom of the deck pivot housing. Be aware that the nuts can
fall from the housing as the bolts are being installed and fall to the floor. You may need
to hold the huts in place while tightening these fasteners.
Experience Series 700 Line Treadmills
120
5 Replacement Procedures
Belt and Deck Replacement Procedure
