ProMinent DULCOMETER diaLog DACb - Control Parameter [Type]

Value pH
6.00 7.00 8.00
Setpoint
Control variable
- 100 0 +100
Negative deviation
Positive control variable
Time
Time
A1472

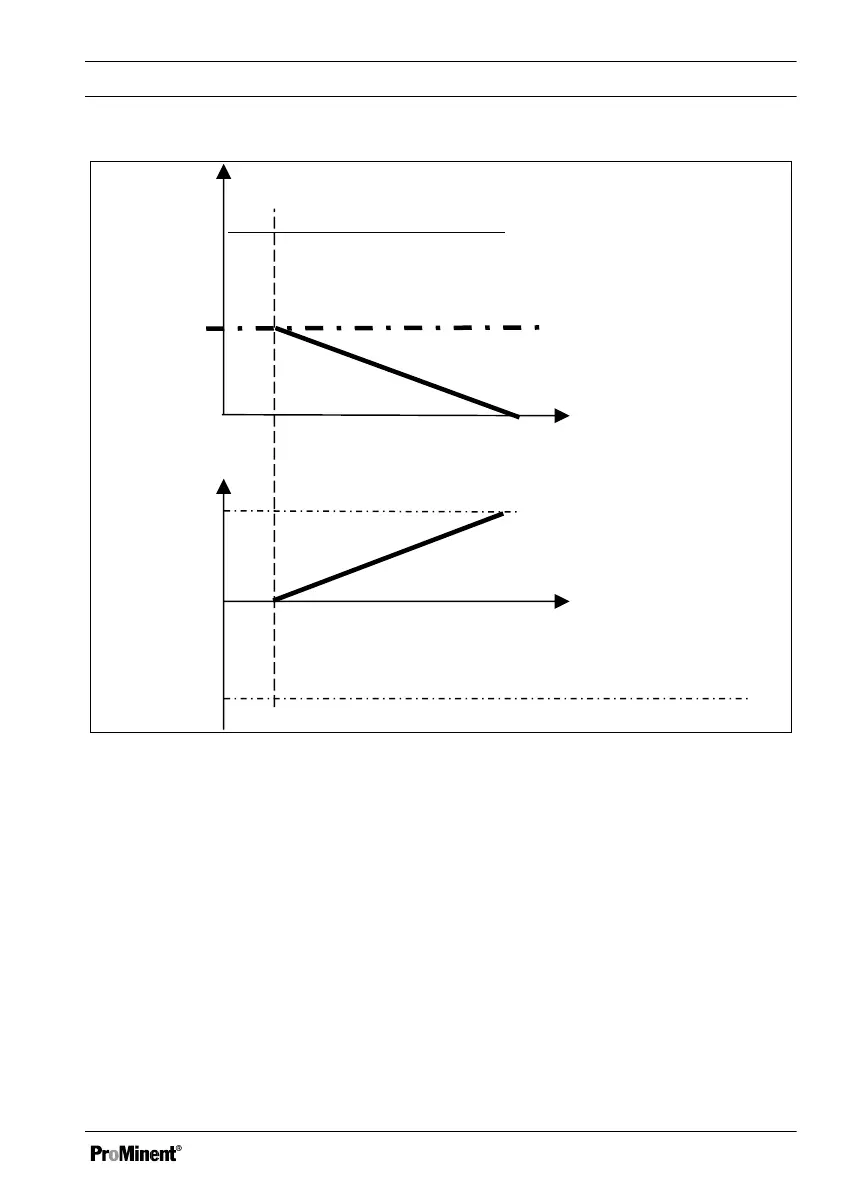

Fig. 86: Control type PID monodirectional, pH-increasing direction
Adjustable parameters in the [Control] menu
Make the following selection in the Control
menu:
11.1 Control parameter [Type]
You set the controller type under the menu
option [Type] . You can set the [Type] as
[1-way] or [2-way] .
P, PI, PID controllers are continuous control‐
lers. The control variables can take any value in
the control range from -100 % … +100 %.
P controller:
This controller type is used with an integrating
control path (e.g. [Batch Neutralisation] ). If the
control deviation becomes small then the con‐
trol (actuation) of the actuator becomes smaller
(proportional relationship). If the setpoint is
nearly reached, then the control output is nearly
0 %. However the setpoint is never exactly
reached. Consequently a permanent control
deviation results. When stabilizing large
changes, excess oscillations may occur.
Setting the [Control]
127
