20 Spare Parts and Accessories

20.1 Spare parts

987

A1266

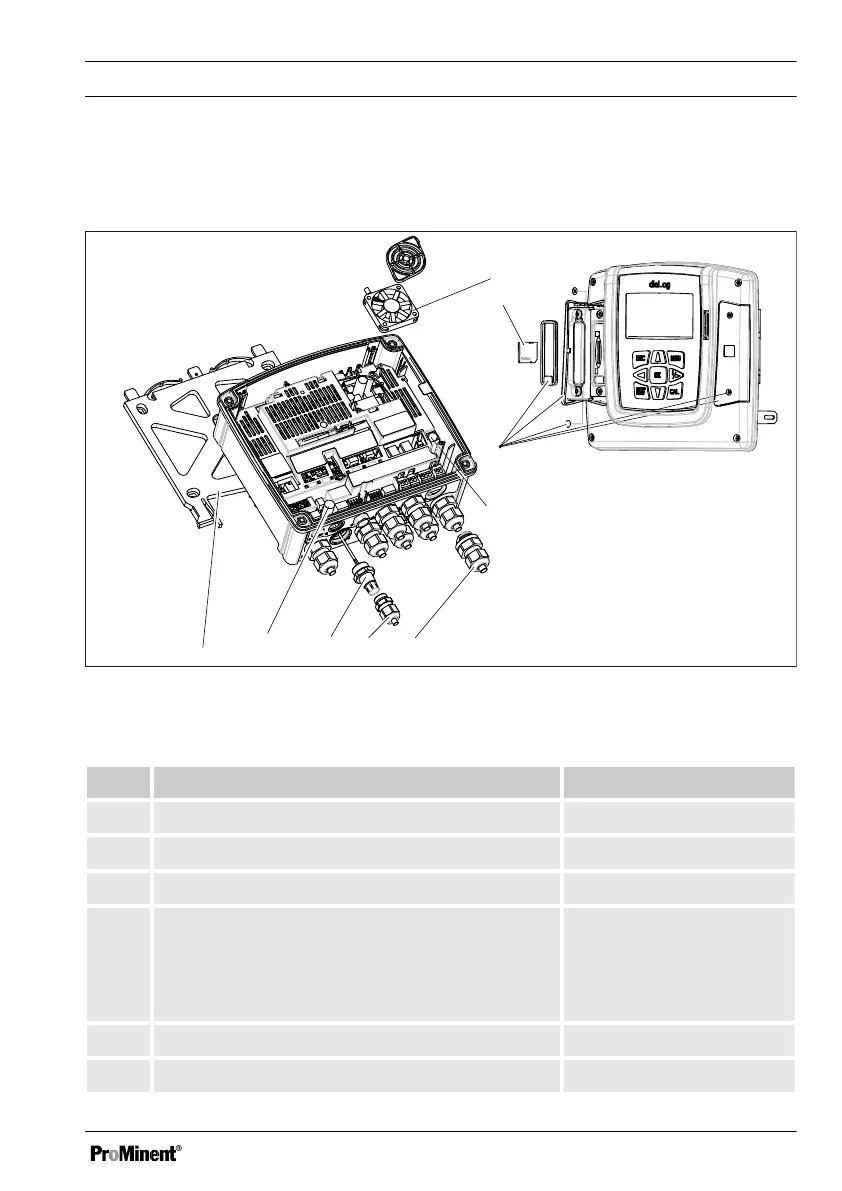

Fig. 124: Spare parts

Pos. Spare parts Order number

1 with 230 V device: micro-fuse 5x20 T 1.6 A 732411

1 with 24 V device: micro-fuse 5x20 T 3.15 A 732414

2 Fan housing with speed signal, 5 V DC, 50x50x10 mm 733328

3 Interface cover, spare parts package

n Cover, left

n Cover, right

n Fastenings, complete

1044187

4 Wall bracket 1039767

5 Guard terminal, top part 733389

Spare Parts and Accessories

179
