Terminal diagram with protective RC circuit (optional)

RC-Schutzbeschaltung

Stromnetz

Stromnetz

Pumpe 1 (Heber)

Pumpe 2 (Senker)

Stromnetz

Extern

A1180

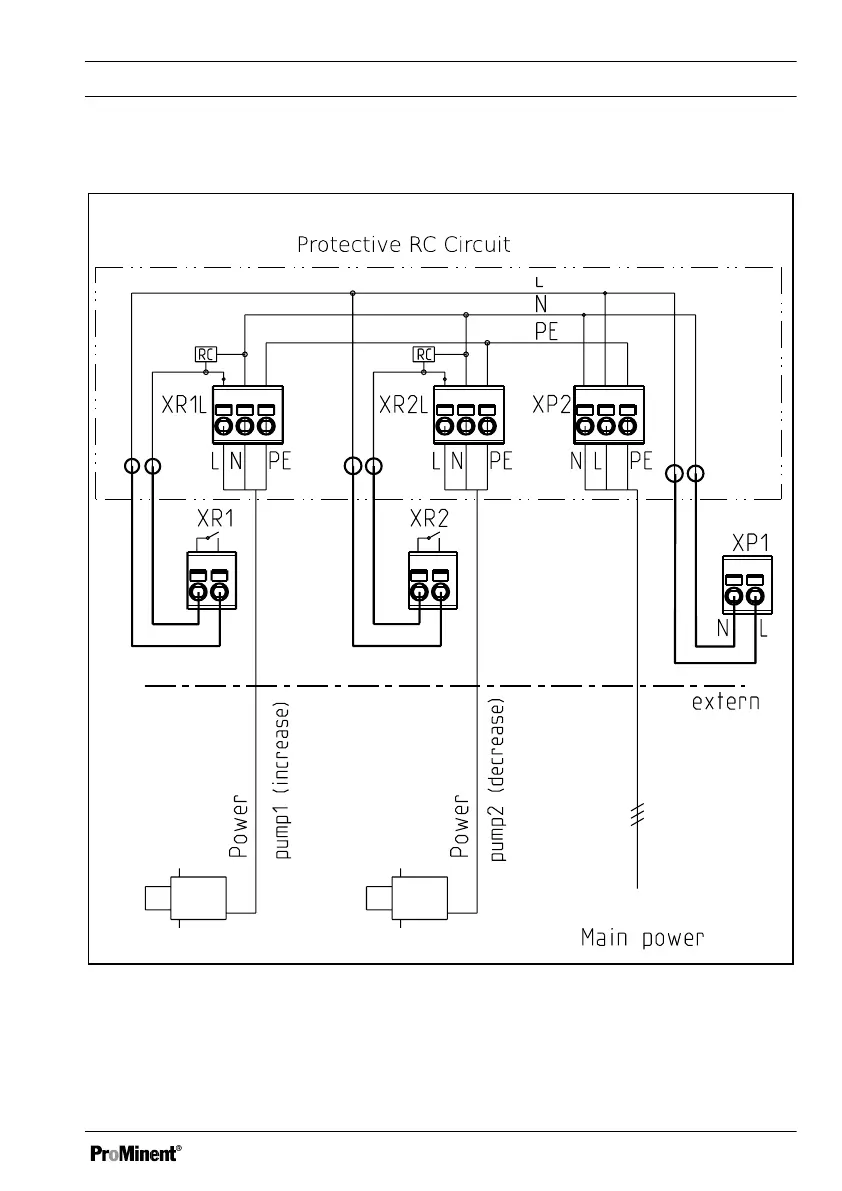

Fig. 18: Terminal diagram with protective RC circuit (module D, optional). The RC unit is only per‐

mitted in conjunction with the 230 V design.

Assembly and installation

47
