3. Use the wall bracket as a drilling
template to mark the positions of
four drill holes
4. Drill the holes: Ø 8 mm, d = 50 mm

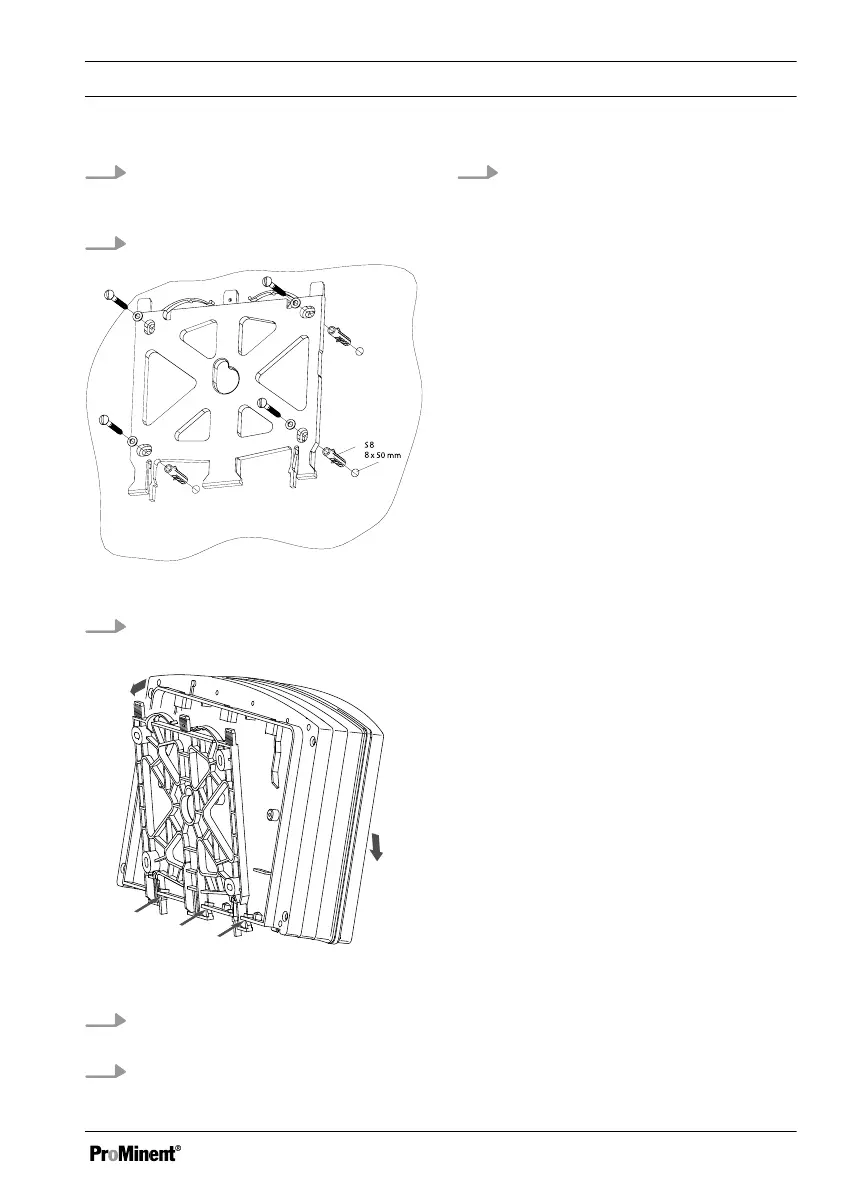

Fig. 8: Fitting the wall bracket
5. Screw the wall bracket into position
using the washers.
Fig. 9: Fitting the wall bracket
6.
Hook the bottom of the housing (1)
into the wall bracket
7. Lightly press the housing at the top
(2) against the wall bracket
8.
Then check that the housing is
hooked in at the top and press
down (3) until it audibly engages
Assembly and installation
27
