6.1 Scope of supply
The following components are included as standard:
Description Quantity
Controller DAC 1
Assembly material, complete, 2P Universal (set) 2
Operating Manual 1
General safety notes 1
6.2 Mechanical Installation
6.2.1 Wall mounting
Mounting materials (contained in the
scope of supply)
n 1 x wall bracket
n 4 x PT screws 5 x 35 mm
n 4 x washers 5.3
n 4 x rawl plug Ø 8 mm, plastic
Wall mounting
Take the wall bracket out of the housing

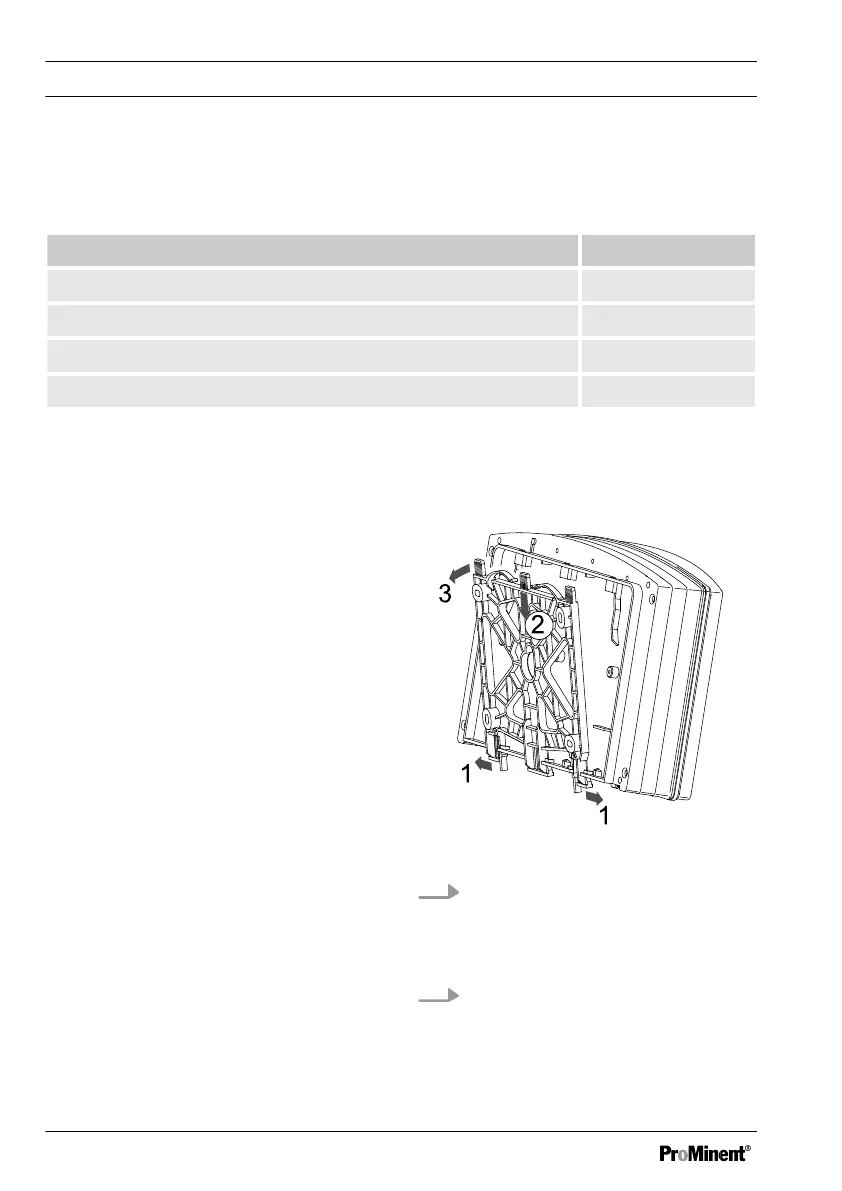

A0490
Fig. 7: Removing the wall bracket
1. Pull the two snap hooks (1) out‐
wards
ð
The wall brackets snaps slightly
downwards.
2. Push the wall bracket downwards
(2) from the housing and fold (3) it
out
