ProMinent DULCOMETER - Cable Cross-Sections and Cable End Sleeves

Service interfaces
Sicherung
Lüfter 3-polig
USB
Display/Tastatur
Anschluss SD-Karte
Anschluss
Kommunikation
Batterie
Baugruppen Ident-
Etikett
A1175

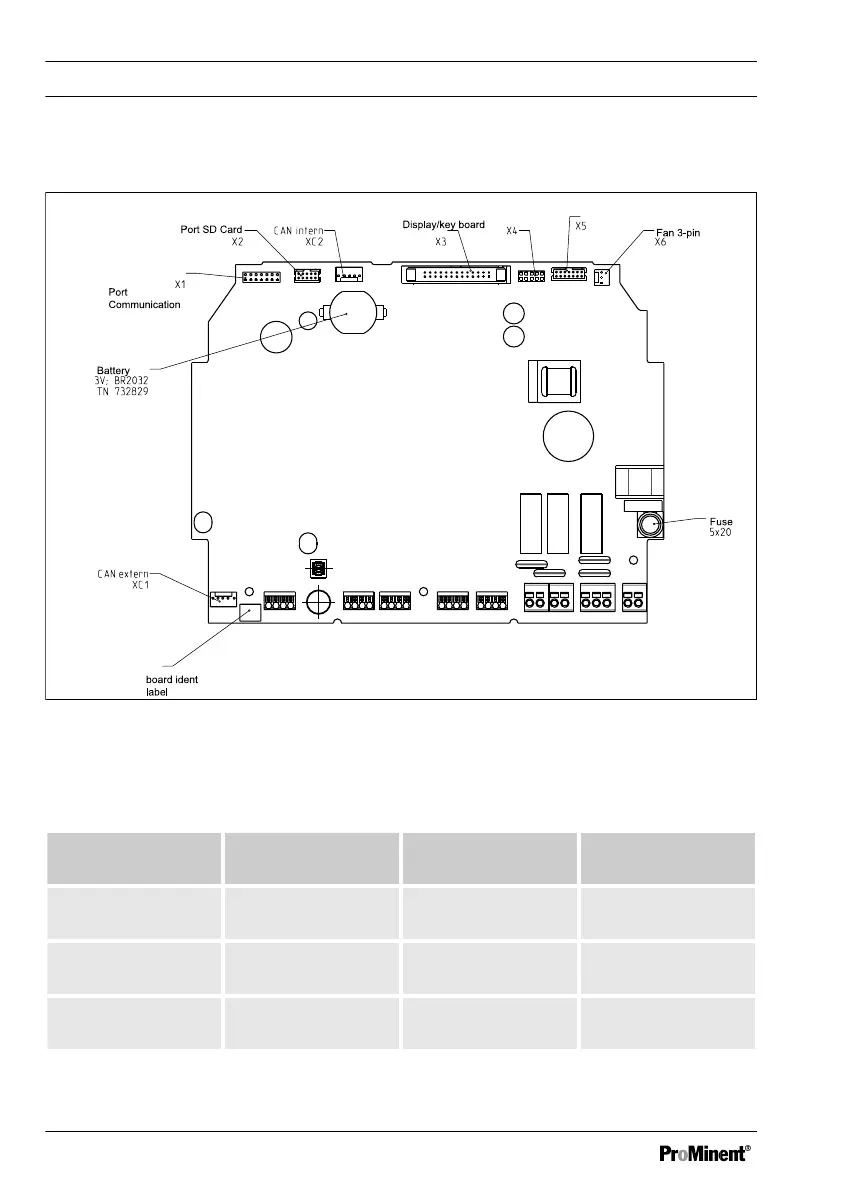

Fig. 20: Service interfaces
6.3.3 Cable Cross-Sections and Cable End Sleeves
Minimum cross-sec‐
tion
Maximum cross-
section
Stripped insulation
length
Without cable end
sleeve
0.25 mm
2
1.5 mm
2
Cable end sleeve
without insulation
0.20 mm
2
1.0 mm
2
8 - 9 mm
Cable end sleeve
with insulation
0.20 mm
2
1.0 mm
2
10 - 11 mm
Assembly and installation
42
