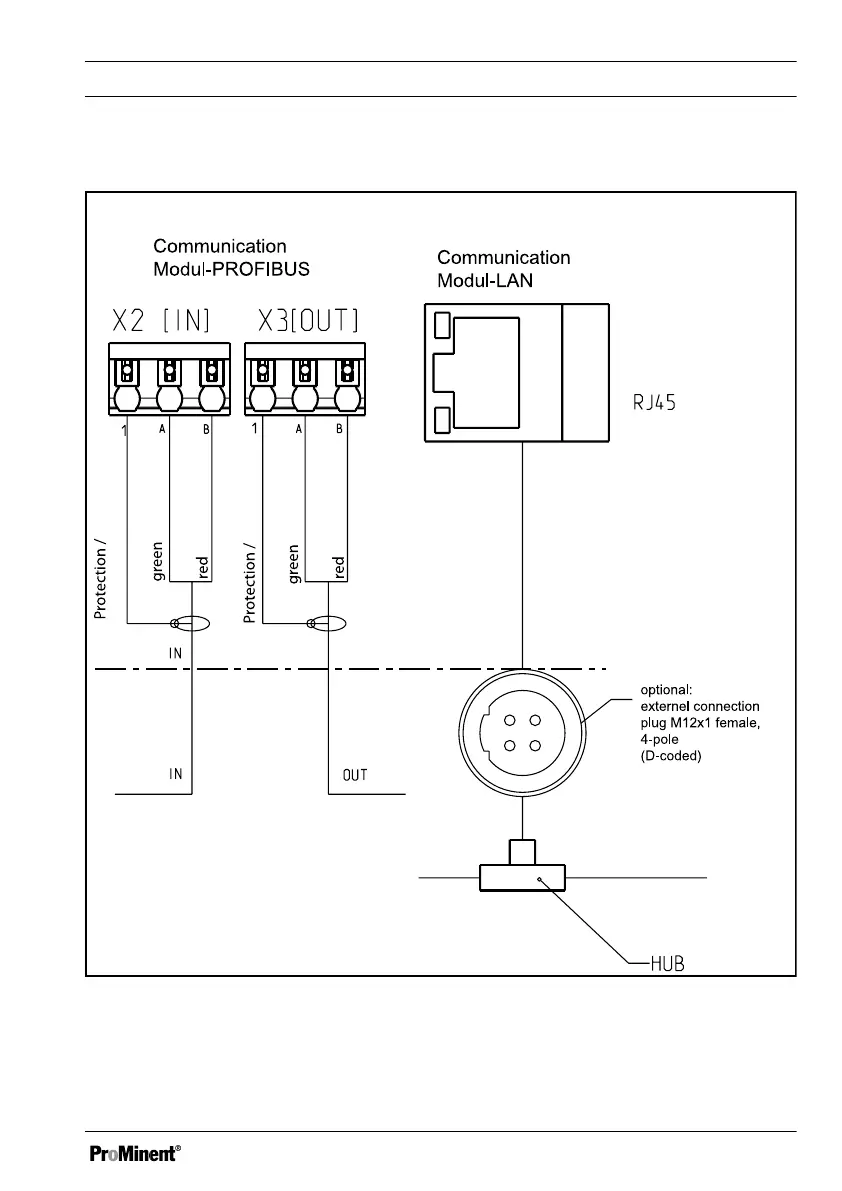

Terminal diagram of the DAC "communication unit"

Kommunikation

Modul-PROFIBUS

Kommunikation

Modul-LAN

optional:

externer Anschluss

Stecker M12x1 weiblich,

4-polig

(D-codiert)

LAN-Netzwerk

Eingang

Ausgang

Abschirmung

grün

rot

Abschirmung

grün

rot

A1173

Fig. 19: Terminal diagram of the DAC communication unit

Assembly and installation

41
