ProMinent DULCOMETER - Calibration Data for ORP Sensor (CAL)

CAL ORP
Sensor voltage
Sensor calibration in buffer
A1029
The stability is:
acceptable
good
continue with <CAL>
0.1 mV
very good

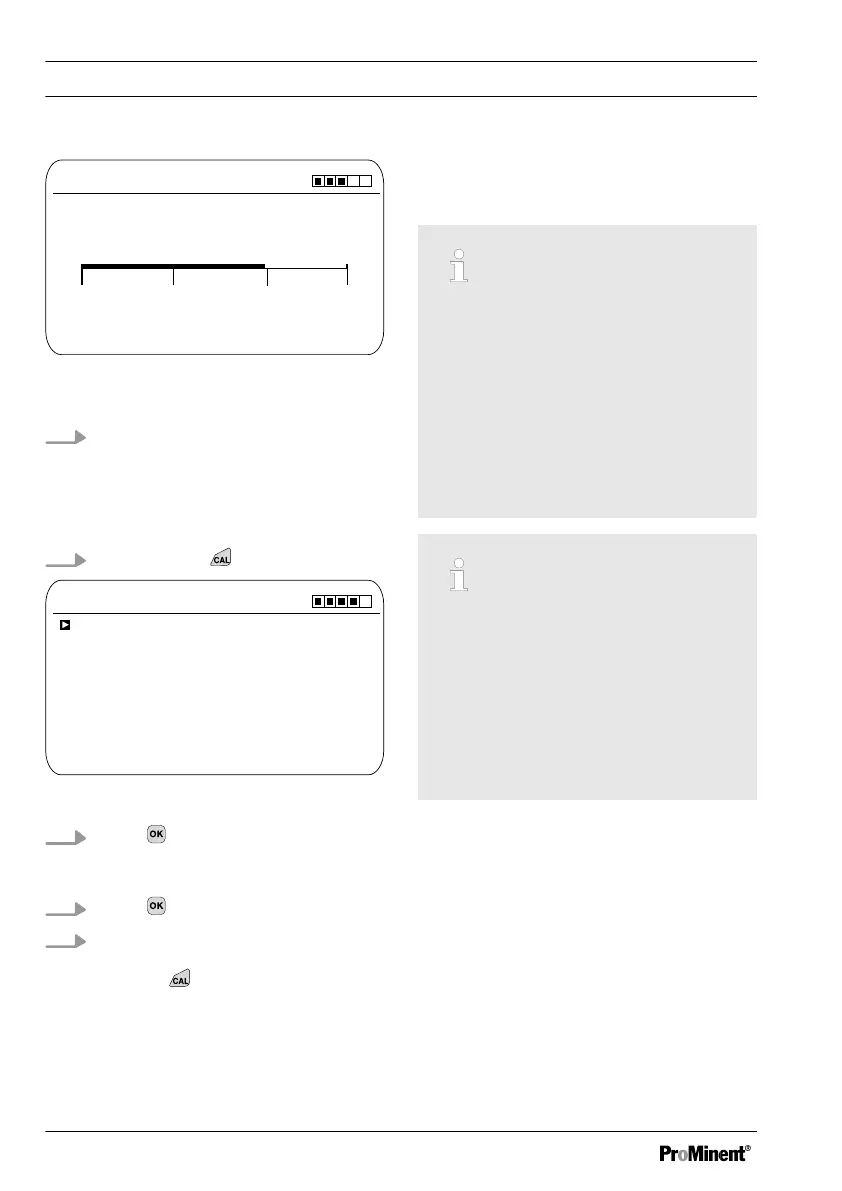

Fig. 46: Display of the sensor stability ach‐
ieved
3. The [acceptable / good / very good]
range is displayed
ð
The black part of the horizontal
bar indicates the range
detected.
4.
Continue with
CAL ORP
Offset
Buffer value
A1030
Accept with <CAL>
165 mV
0.0 mV
Fig. 47: Adjusting the buffer value
5.
Press and use the four arrow
keys to adjust the mV value of the
buffer you are using
6.
Press
7. Transfer the result of the calibration
into the controller memory by
pressing
ð
The controller operates with the
calibration results.
9.2.3
Calibration data for ORP
sensor (CAL)
Correct sensor operation
– Correct measuring and metering
is only possible if the sensor is
working perfectly
– Refer to the sensor's operating
instructions
– Remove the sensor from the in-
line probe housing and re-fit it for
calibration. To do this, refer to the
operating instructions for your in-
line probe housing
ORP sensor calibration
The ORP sensor cannot be cali‐
brated. Only an ‘OFFSET’ deviation
of magnitude ± 40 mV can be set and
thus compensated. If the ORP sensor
deviates by more than ± 40 mV from
the reference value, then it must be
checked in accordance with the
requirements of the sensor operating
instructions.
Calibration
