Main unit (channel 1) terminal diagram with assignment options
Schirmklemme
Belegungsvarianten
Belegungsvarianten
Draht- brücke
Optional: externer Anschluss Stecker M12x1 male (A-cordiert)
Digitaler Kontakteingang 1
Digitaler Kontakteingang 2
Potenzialfreie Kontakte
Optional: SN-6- Anschlussbuchse
Stromquelle
Sensor
Temperatur
Temperatur
Potenzialausgleich
Normsignal-Eingang
2-Leiter-Normsignal-Eingang
Schirm
Erdung
A1172

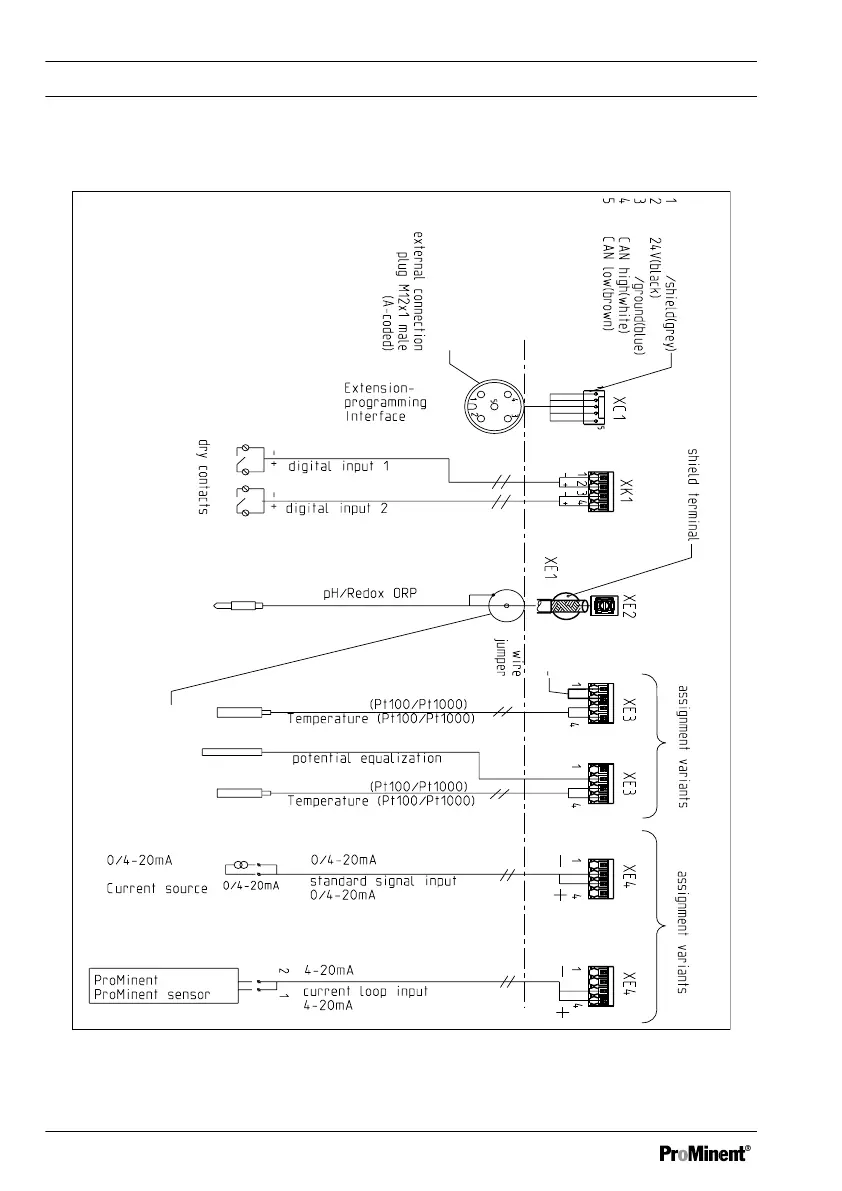

Fig. 15: Terminal diagram with assignment options. Main unit, channel 1, there can only
be one main measured variable, e.g. chlorine sensor, connected to a unit.
