PULSAR MEASURE
MENT
181
HART
Ultra 4 HART
modem supports isolated (i.
e. floating) si
ngle and multi-drop
connections, thereby p
ermitting active or passiv
e modes. T
erminal
connections, communic
ating to software such as
PACT
ware are shown as
below:

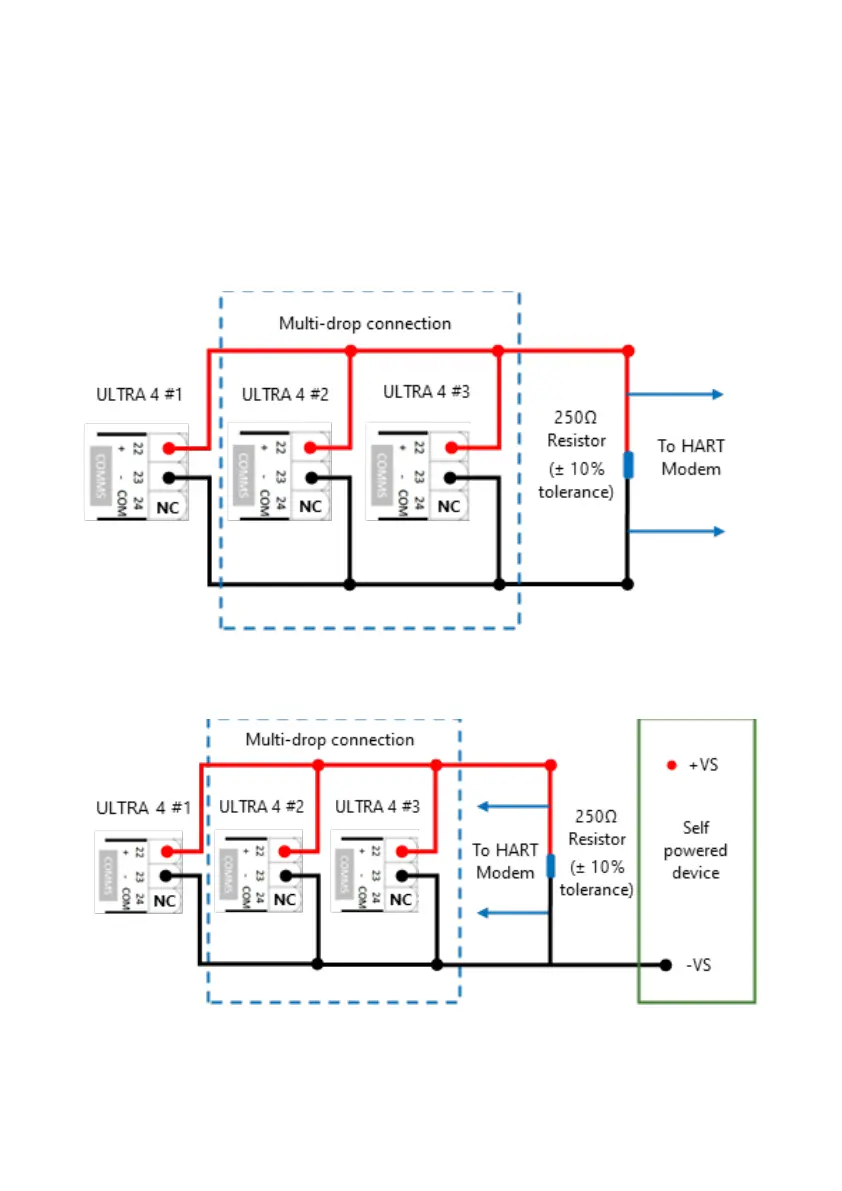

Active Mode 1 (U
sing Ultra 4
internal supply):
Active Mode 2 (
Connected to se
lf-powered
device):
180
182
Table of Contents
default chapter
4
Table of Contents
4
Chapter 1: Start here
9
About this Manual
9
About the Ultra 4
10
Functional Description
11
How to Use this Manual
12
Product Specification
13
EU Certificate of Conformity
15
Chapter 2 Ultra 4 Installation
16
Unpacking
16
Power Supply Requirements
16
Location
16
Typical System Wiring
18
Dimensions
19
Wall Mount
19
Fascia Mount
21
Terminal Connection Details
23
Interface Connections
24
Terminal Connections
24
Fuse Location
26
Preparation for Operation
27
Maintenance
27
Chapter 3 How to Use Your Ultra 4
28
Operating the Controls
28
Run Mode
29
How to Access Program Mode
38
Menu Keys
39
Hot Keys
40
Numeric Keys
40
Using the Menu System
41
Directly Editing Parameters
42
Test Mode
43
Using the Serial Interface
44
Parameter Defaults
46
Chapter 4 Ultra Wizard
47
Enter Program Mode
47
Choose Ultra Wizard
47
Ultra 4 - Level / Volume
48
Ultra 4 - Pump Control
48
Ultra 4 - Flow
49
Chapter 5 Level / Volume
51
Quick Setup
53
Example 1 Level Monitoring with Alarms
57
Example 2 Level Monitoring and Control (up or Down)
59
Example 3 Volume Application
61
Chapter 6 Pump
64
Quick Setup Menu
66
Example 4 Level Monitoring with Alarms
69
Example 5 Sump Control (Pump Down)
71
Example 6 Reservoir Control (Pump Up)
73
Chapter 7 Flow
75
Exponential Devices
82
Calculations
85
BS3680 Flumes (P700 = 2)
89
Rectangular Flume Calculations
90
U-Throated Flume Calculations
91
Example 2 BS3680 U-Throated Flume
92
BS3680 Weirs (P700 = 3)
94
Rectangular Weir Calculations
94
V-Notch Weir Calculations
95
BS3680 Rectangular Broad Crested Weir
98
Rectangular Broad Crested Weir Calculations
99
Special Devices
100
Palmer Bowlus and H-Flume Calculations
101
V-Notch Angle Weir (Non-BS 3680) Calculations
102
Universal Calculations (P700=6)
102
Chapter 8 Parameter Guide
103
Menu System
103
Top Level Menu
103
Application Menu
104
Relays Menu
105
Data Logs Menu
106
Volume: Available When Ultra Wizard = Volume
107
OCM: Available When Ultra Wizard = Flow
108
Display Menu
109
Ma Output Menu
110
Compensation Menu
110
Stability Menu
111
Echo Processing Menu
112
System Menu
113
Device Comm Menu
114
Test Menu
115
Application Parameters
116
Operation
116
Dimensions
117
Relay Parameters
120
Alarms
121
General Control
125
Pumps
126
Control
129
Miscellaneous
131
Common Parameters
133
Data Log Parameters
133
Volume
138
When Ultra Wizard = 1 Level/Volume
138
Conversion
138
Breakpoints
143
Tables
144
OCM Parameters
145
Dimensions
149
Calculations
153
Breakpoints
154
Tables
154
Average Flow
154
Display Parameters
155
Options
155
Failsafe
156
Auxiliary
157
Totaliser
158
Ma Output Parameters
160
Range
160
Operation
161
Setpoint
161
Ma Limits
162
Ma Trim
163
Ma Failsafe
165
Compensation Parameters
165
Offset
165
Temperature
165
Velocity
166
Stability Parameters
167
Damping
167
Rate
167
Filters
168
Echo Processing Parameters
169
Transducer Status
169
System Parameters
170
Passcode
170
Backup
170
Params ↔ SD
171
System Information
171
Date & Time
172
Watchdog
172
Daylight Saving Time
173
Service Alarm
176
Language
177
Device Comm
178
RS232 Set up
178
Modbus
178
Profibus
180
Hart
181
Test Parameters
183
Simulation
183
Hardware
184
Chapter 9 SD Card Logger
186
About the Micro SD Card Logger
186
Types of Files
186
Setting up the Unit to Log
187
Chapter 10 Troubleshooting
188
Chapter 11 Disposal
189
