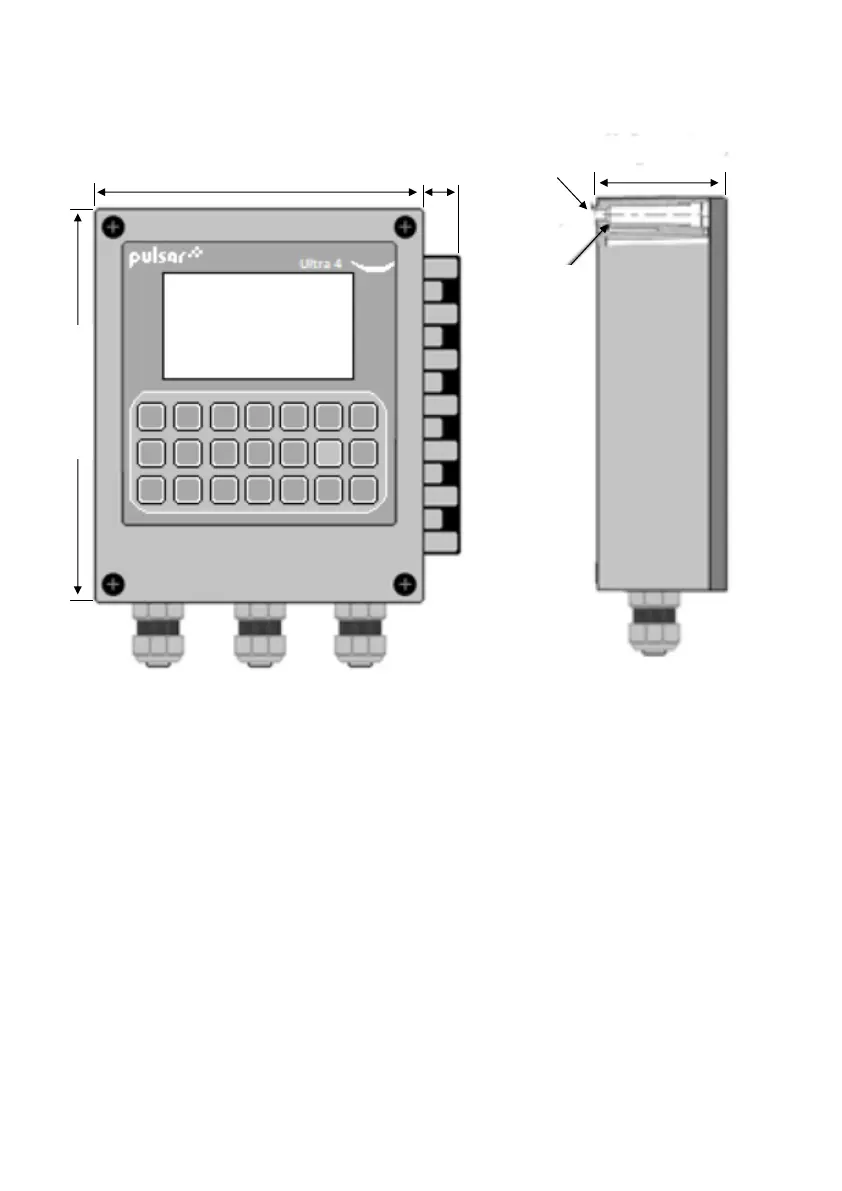

The full dimensions of the wall-mount enclosure are shown below:
Cable Entry
Three M20 cable glands are supplied fitted. They accept cables between 5.0
and 13.0mm (0.2” to 0.5”) overall diameter. The gland cable nuts require a
24mm A/F spanner; tighten to a torque of 2Nm.
63.5mm (2.5”)
Fixing
screws,
thread
d.43mm
(0.16”) max
head
d. 7.6mm
(0.300”) max
130mm (5.12”)
13mm
(0.51”)
150mm (5.
91”)
3 off M20 glands
