ULTRA 4 INSTRUCTION MANUAL
22

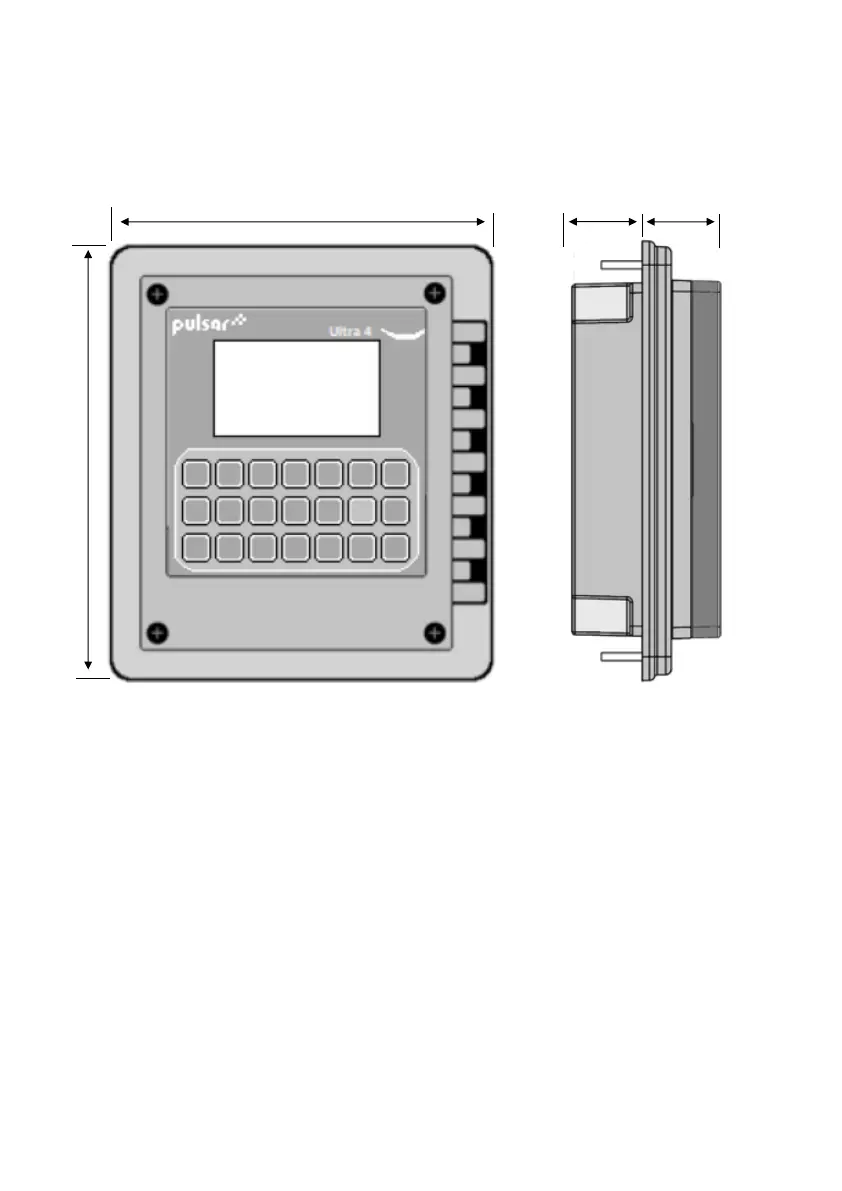

The full dimensions of the fascia enclosure are shown below:
There is a sealing gasket that sits under the flange; check that this is installed
and is a flat fit against the panel. The mounting nuts are M3, requiring a
5.5mm A/F socket. They should be tightened to a torque of 0.5Nm.
30mm
(1.18”)
33mm
(1.30”)
160mm (6.30”)
180mm (
7.07”)
