780C Multi-Interface Interoperability Tester – User Guide Page 100

September 29, 2014

Revision A1

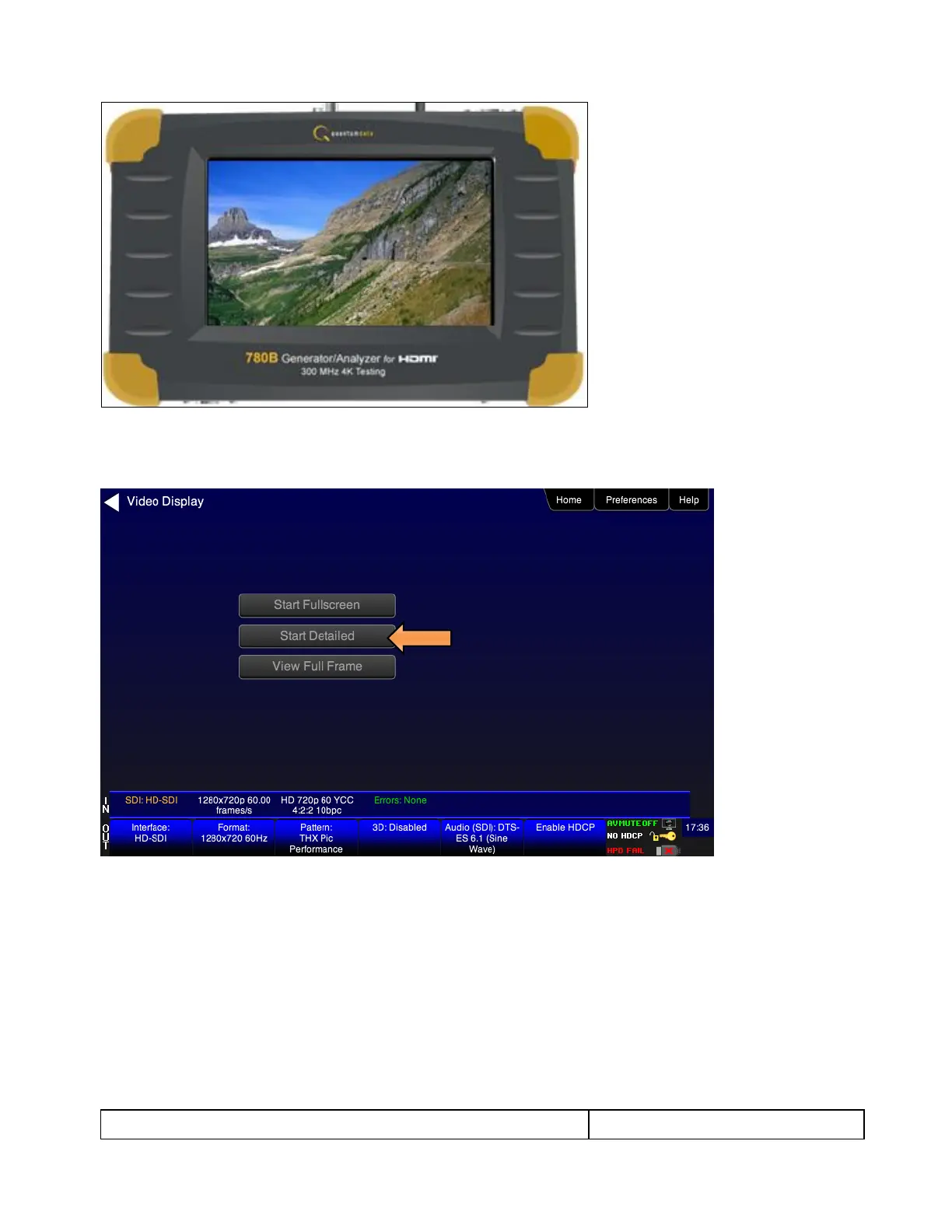

5. Return to the Source Test menu by touching the LCD. The Source Test menu reappears as shown below.

6. Touch select the screen to return to Video Display menu.

7. Touch select the Start Detailed activation button on the Video Display menu to view the incoming video

along with the metadata from the source device under test. In this example a test pattern is shown.
