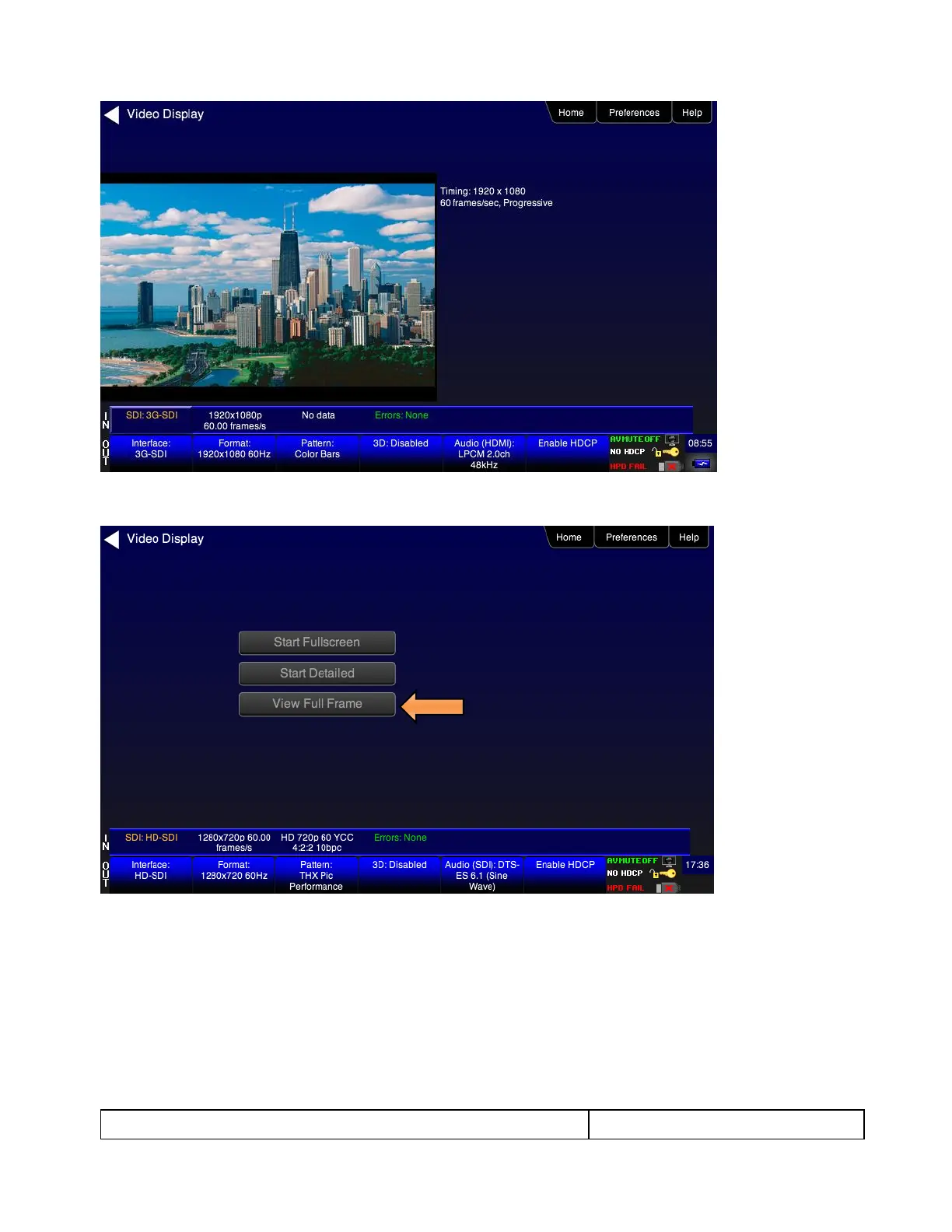

For the 780C you have the additional option of capturing and viewing a captured bitmap of the entire
resolution of the incoming video View Full Frame.
Use the arrows to move about the video frame. Note that in the example below the 780 is receiving a test
pattern; typically this screen would show video from a source device.
