780C Multi-Interface Interoperability Tester – User Guide Page 237

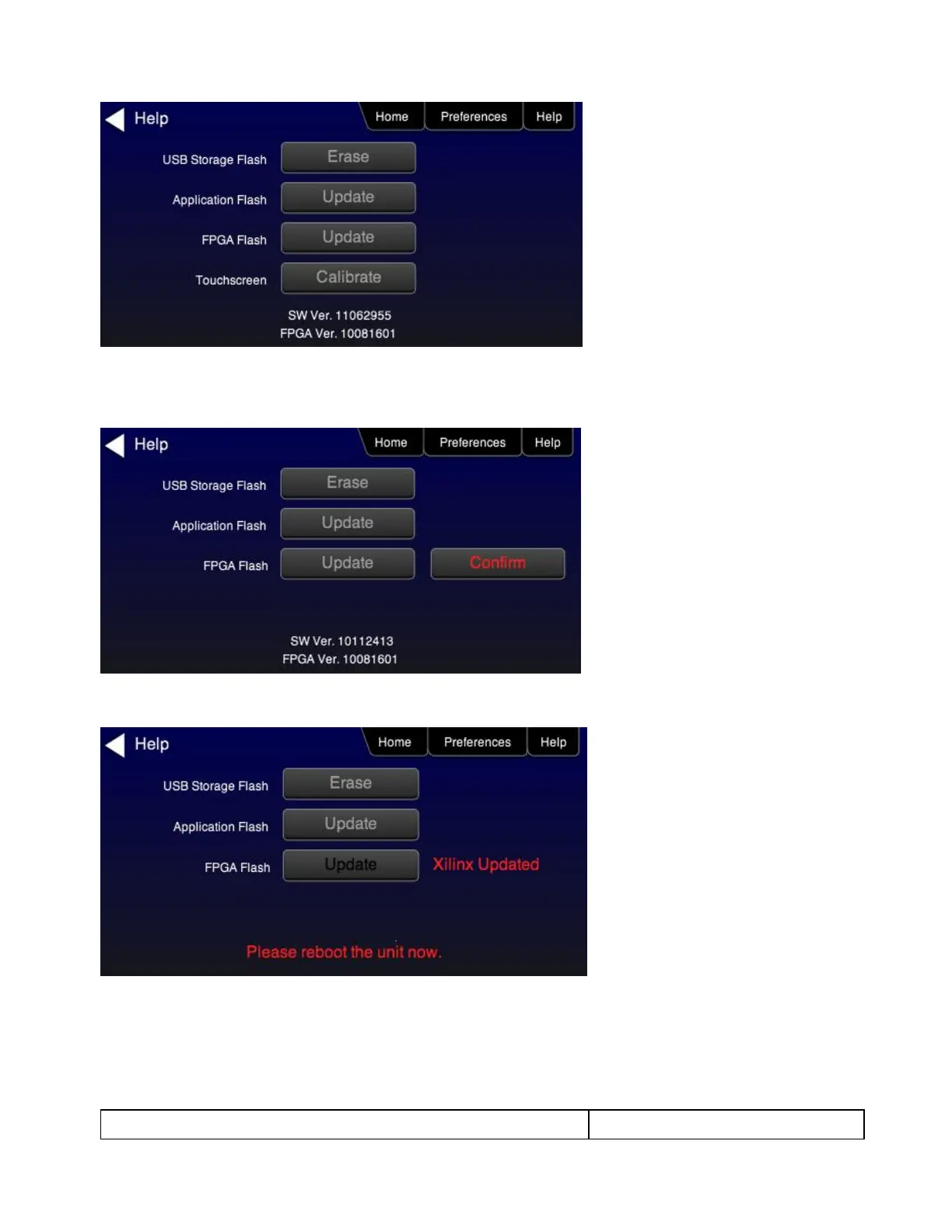

12. Activate the gateware (if you are updating the FPGA Flash) by touching the associated Update button.
A confirmation prompt is displayed. Touch select Confirm to initiate the firmware upgrade. (Note: The
screen on your unit may appear slightly different.)
The screen will show several messsages indicating the progress of the update. Once the gateware update has
completed the following screen appears.
13. Reboot the 780C by power cycling.
14. Navigate back to the Help menu to access the upgrade screen.
15. Activate the firmware (Application Flash) by touch selecting the associated Update button.
A confirmation prompt is displayed as shown below. Touch select Confirm to initiate the firmware upgrade.
