Remote control commands
R&S
®
NRPxxP
60User Manual 1179.5760.02 ─ 02

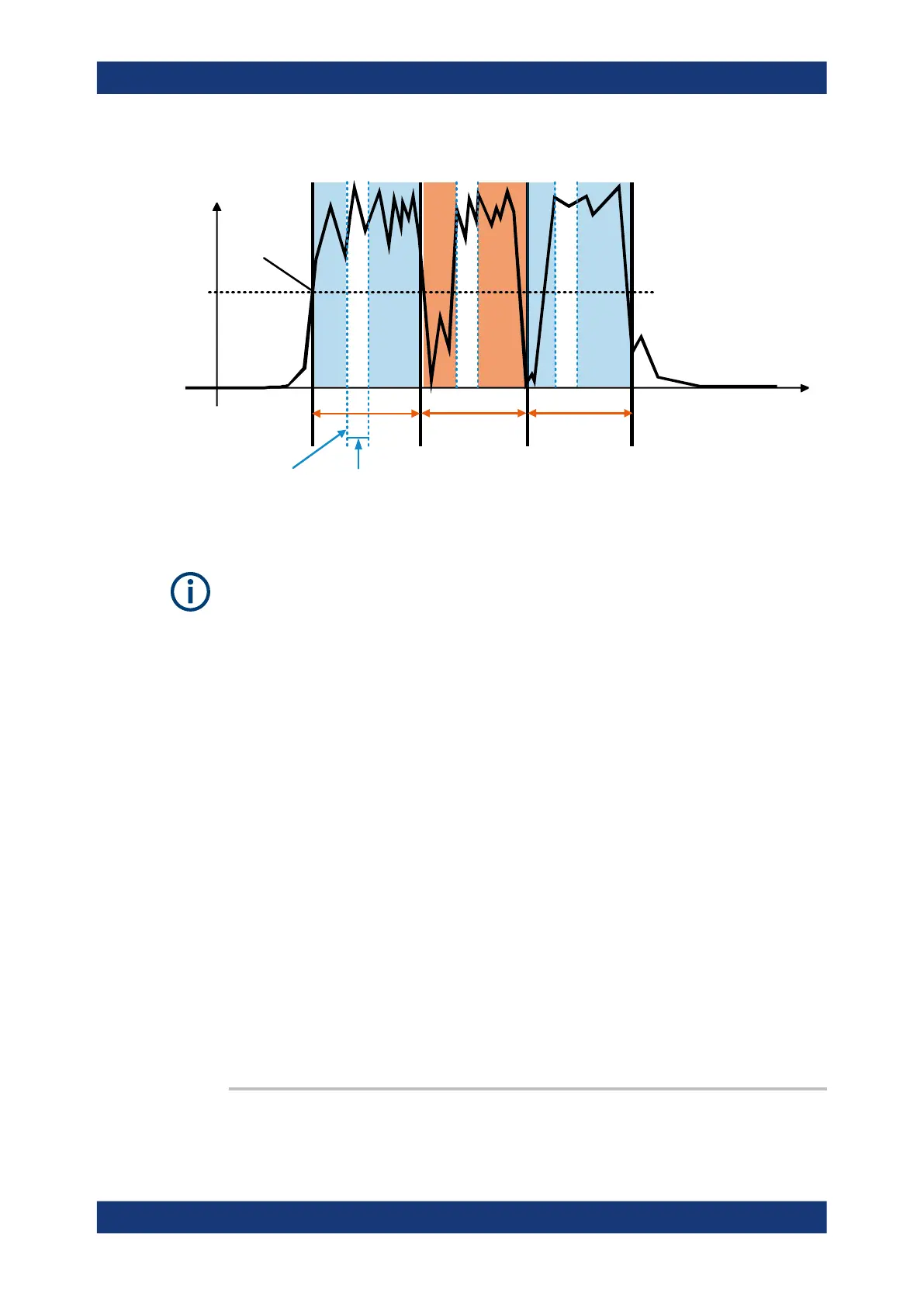

Trigger level
Power
Trigger event
Timeslot 1 Timeslot 2 Timeslot 3
Timeslot width
Time
Start of fence
Length of fence
Figure 8-3: Timeslot parameters
For information on querying the measurement results, see Chapter 8.9.3, "Timeslot
measurement results", on page 96.
8.6.3.1 Triggering a timeslot measurement
In timeslot mode, internal and external trigger events from the signal are evaluated
depending on the settings of the TRIGger:SOURce parameter. It is essential to define
the TRIGger:DELay parameter to ensure that the beginning of the first slot to be mea-
sured coincides with the delayed trigger point.
8.6.3.2 Defining a time interval for the measurement
At the beginning and at the end of the measurement interval, you can define time inter-
vals that are excluded from the measurement, see Chapter 8.7.3, "Excluding intervals",
on page 78.
8.6.3.3 Configuring the time slots
SENSe<Sensor>:[POWer:]TSLot[:AVG]:COUNt.................................................................. 60
SENSe<Sensor>:[POWer:]TSLot[:AVG]:WIDTh...................................................................61
SENSe<Sensor>:[POWer:]TSLot[:AVG][:EXCLude]:MID:OFFSet[:TIME]............................... 61
SENSe<Sensor>:[POWer:]TSLot[:AVG][:EXCLude]:MID:TIME............................................. 61
SENSe<Sensor>:[POWer:]TSLot[:AVG][:EXCLude]:MID[:STATe].......................................... 61
SENSe<Sensor>:[POWer:]TSLot[:AVG]:COUNt <count>
Sets the number of simultaneously measured timeslots. See Figure 8-3.
Configuring the measurement modes
