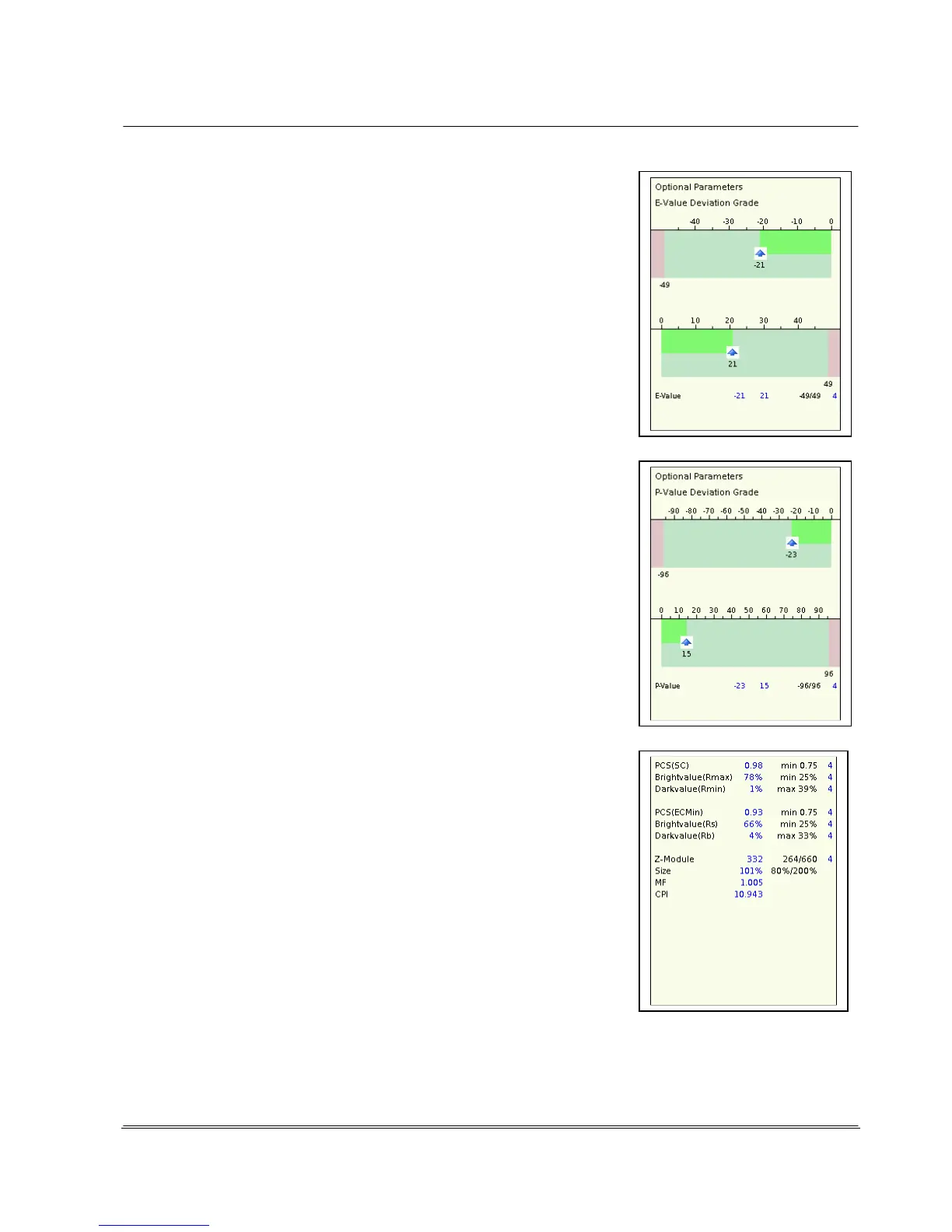

Optional Parameters (3rd Screen of Evaluation)
E-value deviation Grade
E-value deviation: +/-20 % (absolute +-10µm), Grade 4
Optional Parameters (4th Screen of Evaluation)
P-value deviation
P-value deviation: +/-20 % (absolute +-10µm), Grade 4
Optional Parameters (5th Screen of Evaluation)
Brightness value Rmax +/-5 %
Dark value Rmin: +/-3 %
Size: 100 % +/- 1 %
(corresponding. Z-Module 330 µm +/- 3.3µm)
In addition, a second measurement of the 200% EAN Code from the
right-hand side of the calibration card can be measured:
Size: 200 % +/- 1 %
(correspond. Z-Module 660 µm +/- 6.6µm).
A size error is only displayed if the measured value is greater than 201%.
