Template Stimuli: used to save the template file with the desired name and disk location.

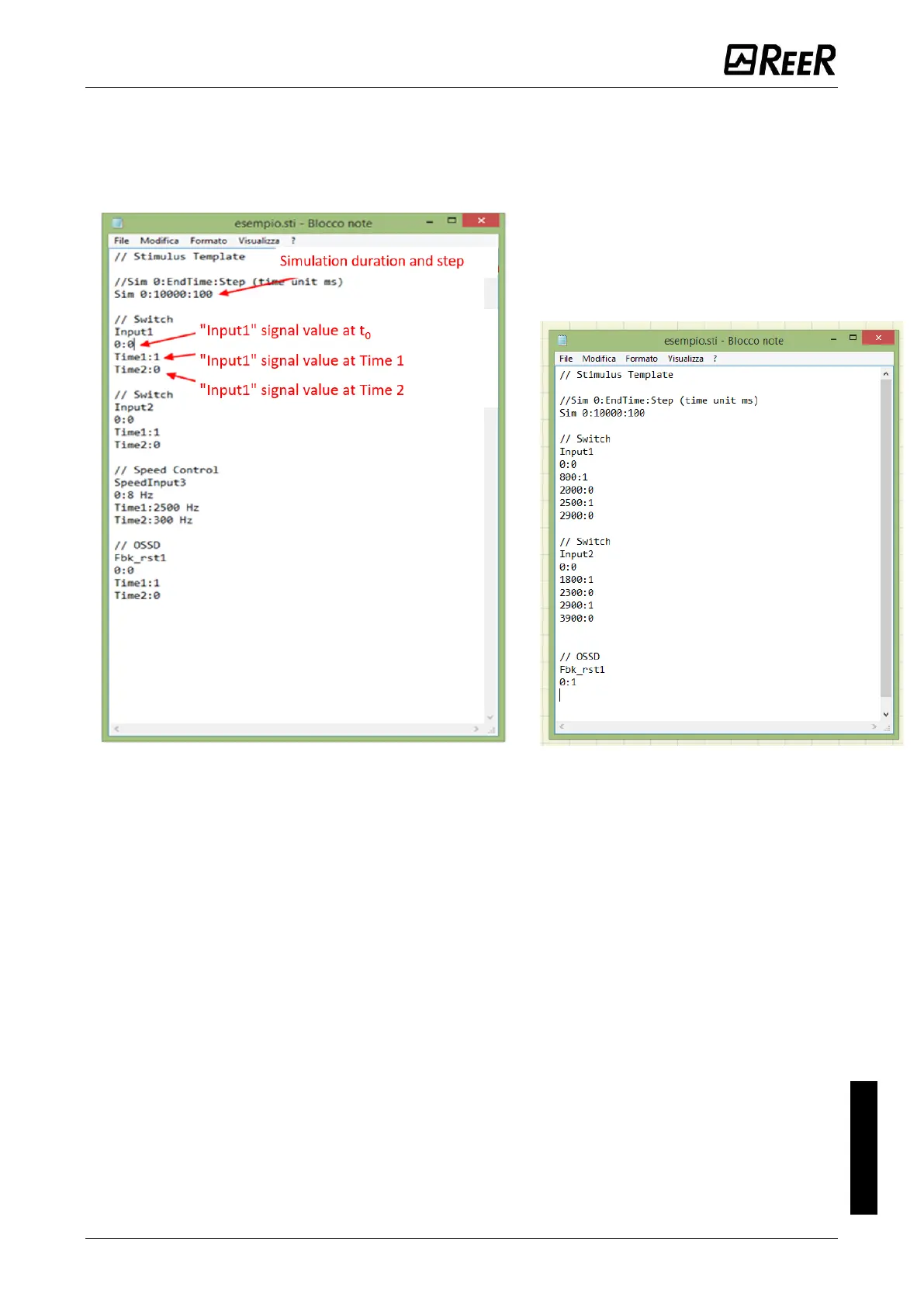

This file will contain the names of the signals as shown in the diagram, Figure 132 Now
you may use a text editor to enter the status of the input signals at a given moment in time
as well as the duration of the simulation and the time step to be used, Figure 133.
Simulation with Stimuli: used to load a template file (suitably completed) and, once
loaded, to immediately start the simulation.
At the end of the simulation, a graph is displayed with the resulting signals.
Load simulation: used to load a previously completed simulation, provided at least one
has been saved.
Traces visibility: used to select the traces (signal waveforms) to be displayed in the graph.
When you press this key, it opens a pop-up window as shown in Figure 134 from which
you can add or remove traces to or from the graph.
