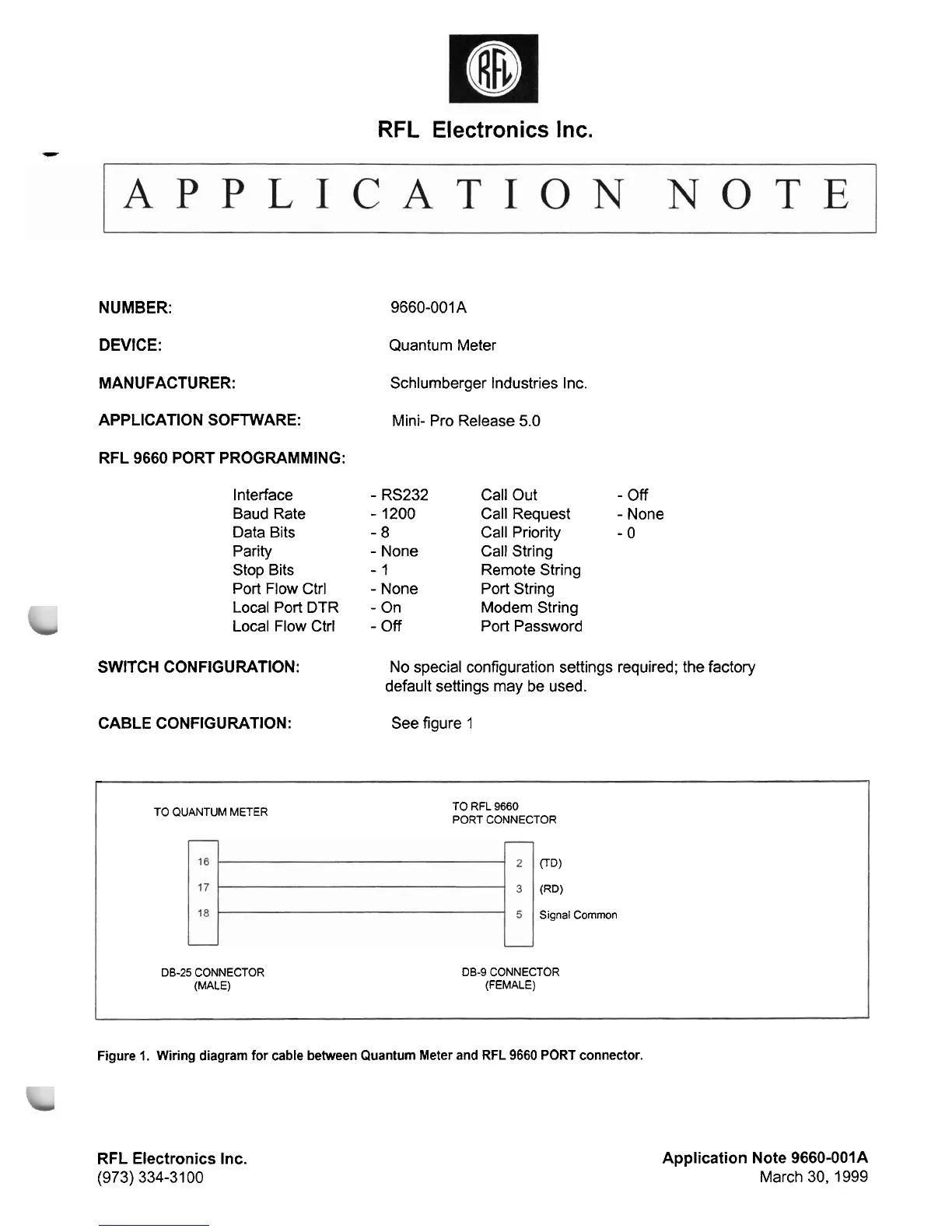

RFL Electronics RFL 9660 - Page 247

RFL Electronics Inc.
1P
NUMBER:
DEVICE:
MANUFACTURER:
APPLICATION SOFTWARE:
RFL 9660 PORT PROGRAMMING:
Interface
Baud Rate
Data Bits
Parity
Stop Bits
Port Flow Ctrl
Local Port DTR
Local Flow Ctrl
9660-001 A
Quantum Meter
Schlumberger Industries Inc.
Mini- Pro Release
5.0
- RS232
- 1200
- 8
- None
- 1
- None
- On
- Off
Call Out
Call Request
Call Priority
Call String
Remote String
Port String
Modem String
Port Password
- Off
- None
- 0
SWITCH CONFIGURATION: No special configuration settings required; the factory
default settings may be used.
CABLE CONFIGURATION: See figure 1
-
TO QUANTUM METER
TO RFL 9660
PORT CONNECTOR
CrD)
(RD)
Signal Common
DB-25 CONNECTOR DB-9 CONNECTOR
(MALE) (FEMALE)
Figure 1. Wiring diagram for cable between Quantum Meter and RFL 9660 PORT connector.
RFL Electronics Inc.
(973) 334-31 00
Application Note 9660-001A
March 30, 1999
