PHOTOCONDUCTOR UNIT (PCU) 26 January, 2001
3-28
3.11.3 PICK-OFF PAWLS
1. Remove the drum. (☛ 3.11.2)
2. Pawl assembly [A]
3. Pick-off pawl [B] (spring x1, spur x1)
Pick-off pawl position adjustment
If the pick-off pawl has marked the drum with a line, the pick-off pawl position can
be adjusted using either method:
• Changing the spur position.
• Changing the pick-off pawl assembly position

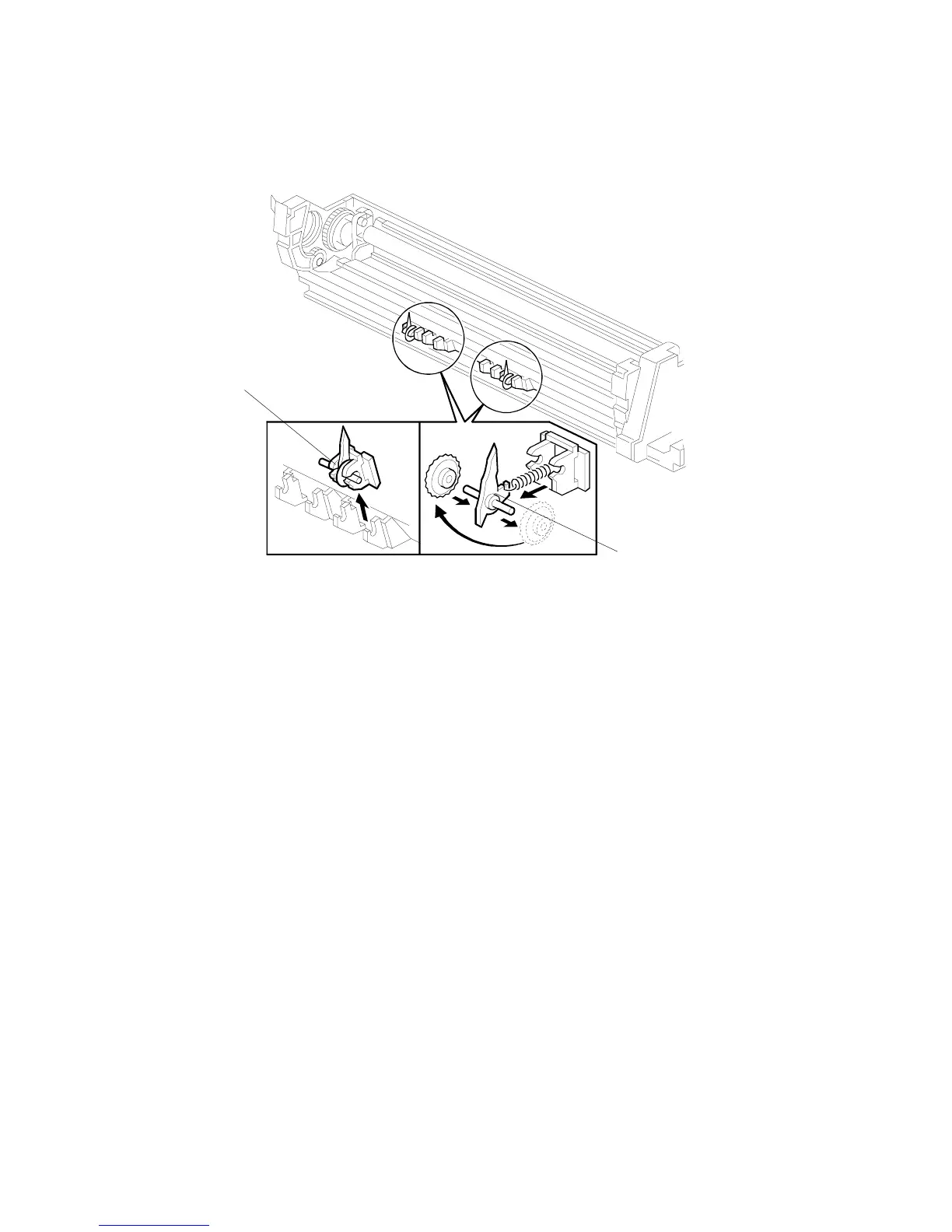

B004R305.WMF
[A]
[B]
