Ricoh A-C2 User Manual

19 January, 2001 DEVELOPMENT
6-51
Detailed
Descriptions
Toner supply mechanism

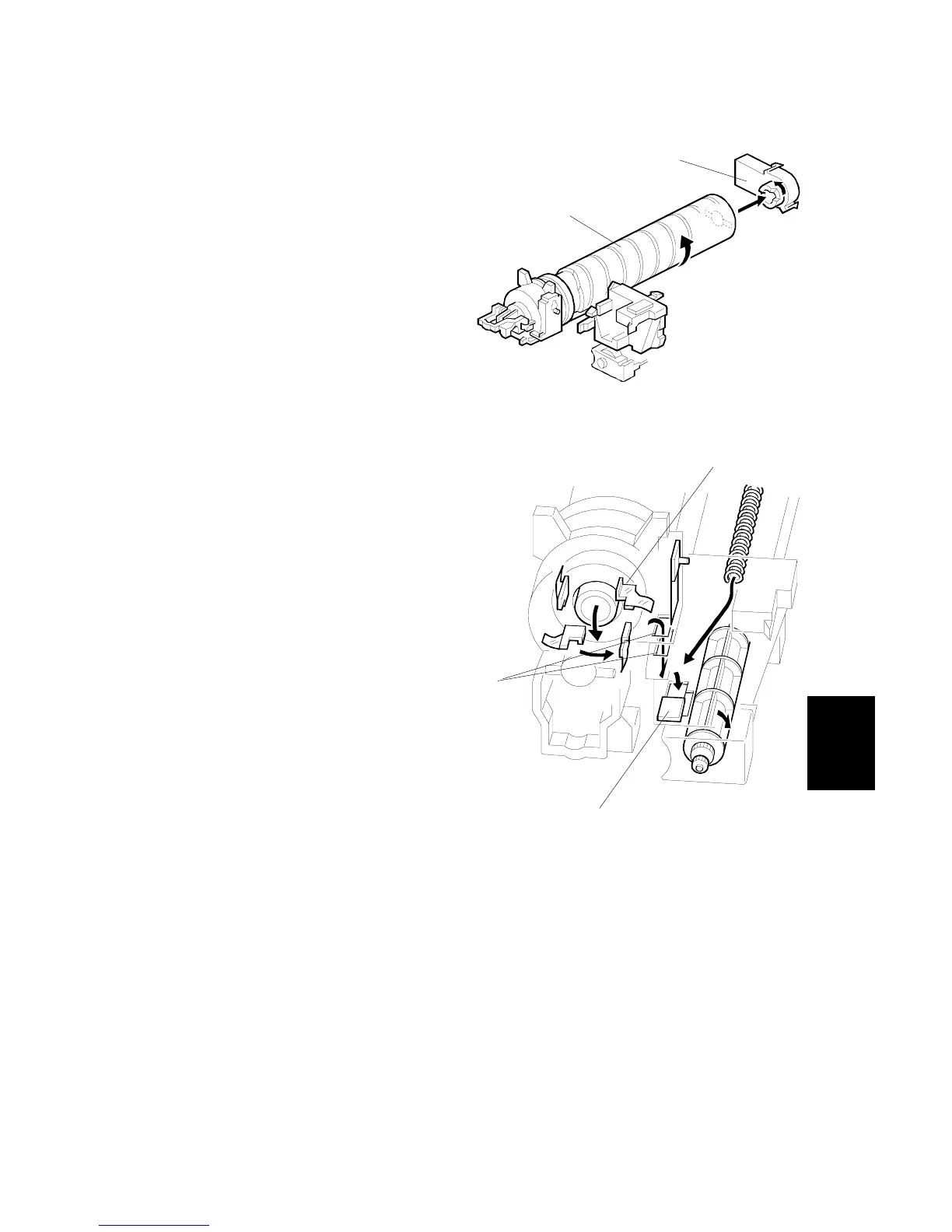

The toner supply motor [A] rotates the
toner bottle [B] and the mylar blades
[C] (see below).
Toner falls into the toner bottle holder, and
the toner supply mylar blades [C] transfer the
toner to slit [D]. Installing the PCU opens the
shutter [E].
The toner falls into the development unit
through the slit.
B004D545.WMF
B004D509.WMF
[A]
[B]
[C]
[D]
[E]
