Ricoh A-C2 - Main Motor

DRIVE AREA 19 January, 2001
3-68
3.18.2 MAIN MOTOR
1. Rear upper cover, high voltage power supply, flywheel (☛ 3.18.1)
2. Timing belt [A] x1
3. Bracket [B] (! x3)
4. Main motor [C] (" x2, ! x3)

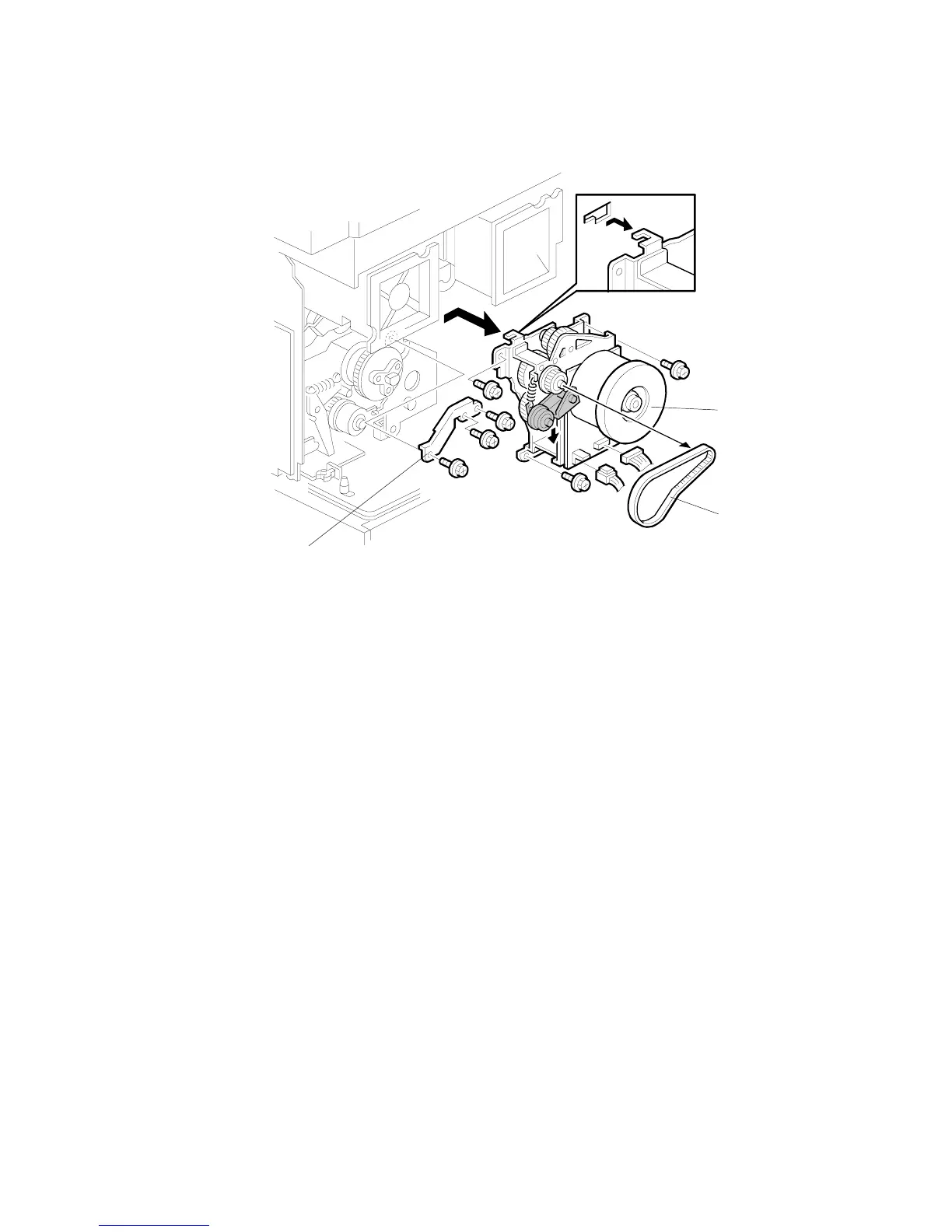

B004R907.WMF
[B]
[A]
[C]
