PAPER FEED 26 January, 2001
3-48

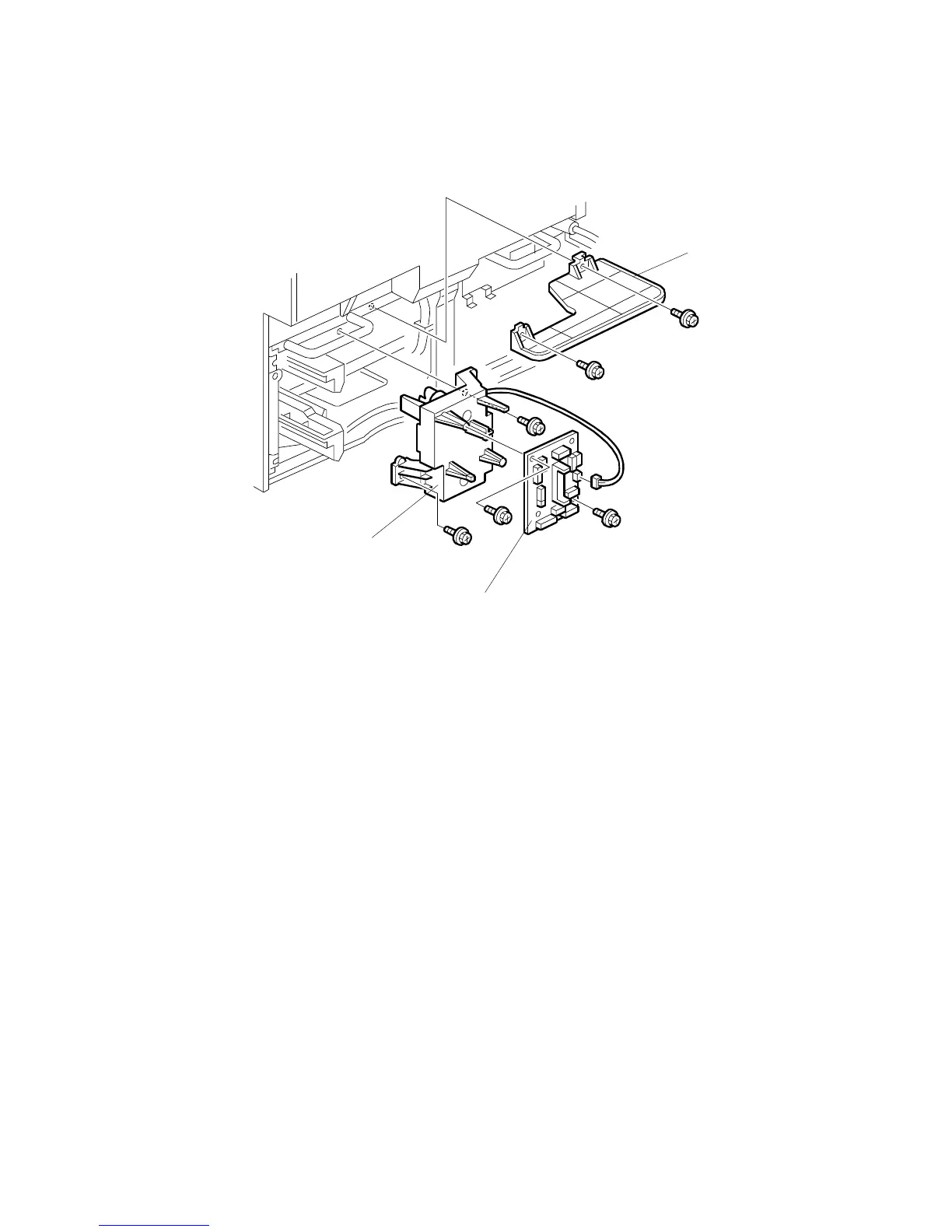

3.14.8 TRAY LIFT MOTOR
1. Rear lower cover (☛ 3.7.2)
2. Bracket [A] (! x2)
3. Motor control board [B] (! x2, " x13)
4. Tray lift motor [C] (! x2)
B004R964.WMF
[A]
[B]
[C]
