Ricoh A-C2 User Manual

LASER UNIT 26 January, 2001
3-22
3.10.2 LASER UNIT
!
WARNING
Turn off the main power switch and unplug the machine before attempting
this procedure. Laser beams can seriously damage your eyes.

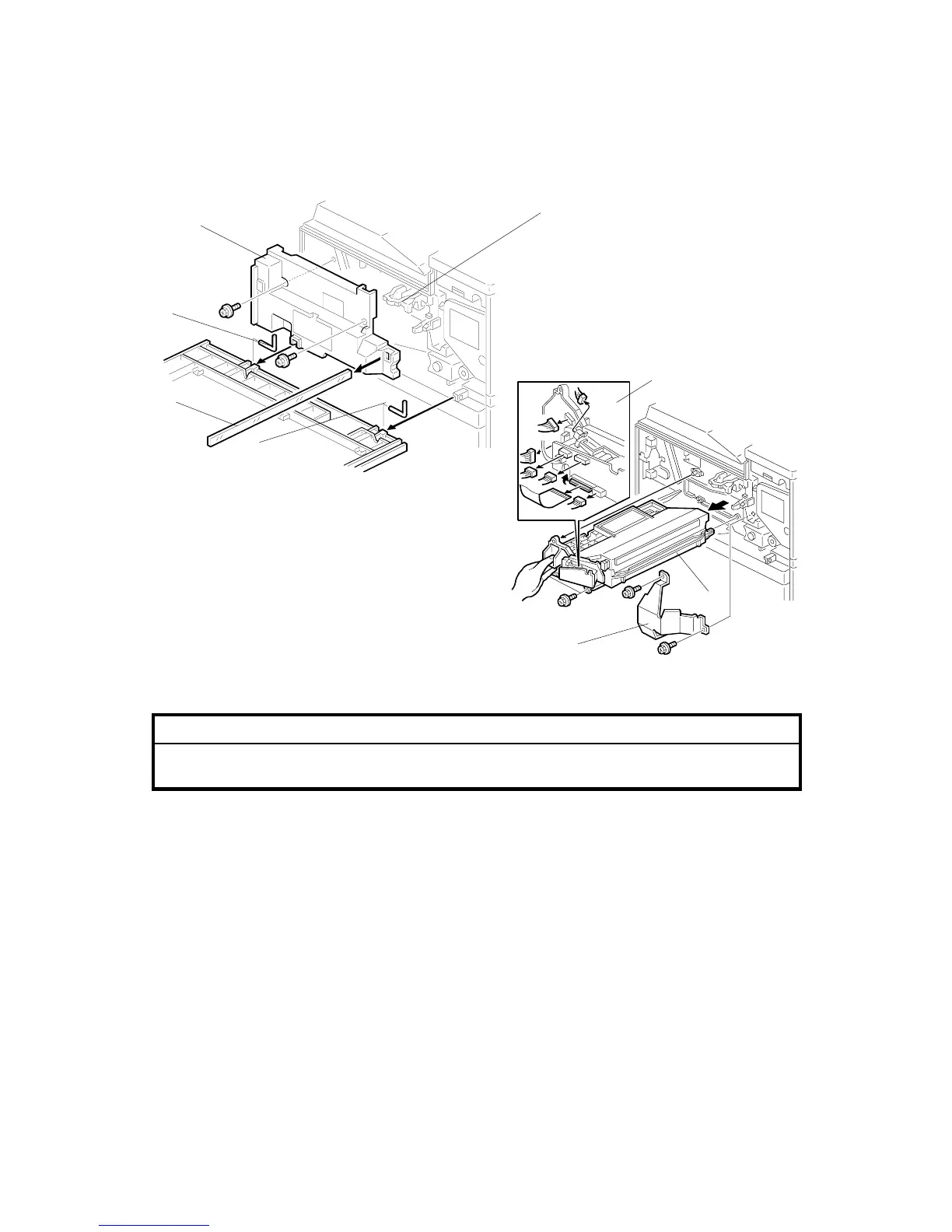

1. Open the front door and raise the toner bottle holder handle [A].
2. Front door (pins [B] x2)
3. Inner cover [C] (! x2, " x2)
4. Shield glass [D]
5. Shield plate [E] (! x2)
6. Laser unit connectors [F] (" x5, " x1 flat cable)
NOTE: Hold the LD board securely when disconnecting connectors.
7. Laser unit [G] (! x2)
NOTE: When sliding out the laser unit, do not hold the LD board. Hold the
laser unit casing.
B004R962.WMF
B004R211.WMF
[E]
[F]
[G]
[A]
[B]
[C]
[B]
[D]
