MAIN MACHINE INSTALLATION 26 January, 2001
1-8
Development Unit and PCU

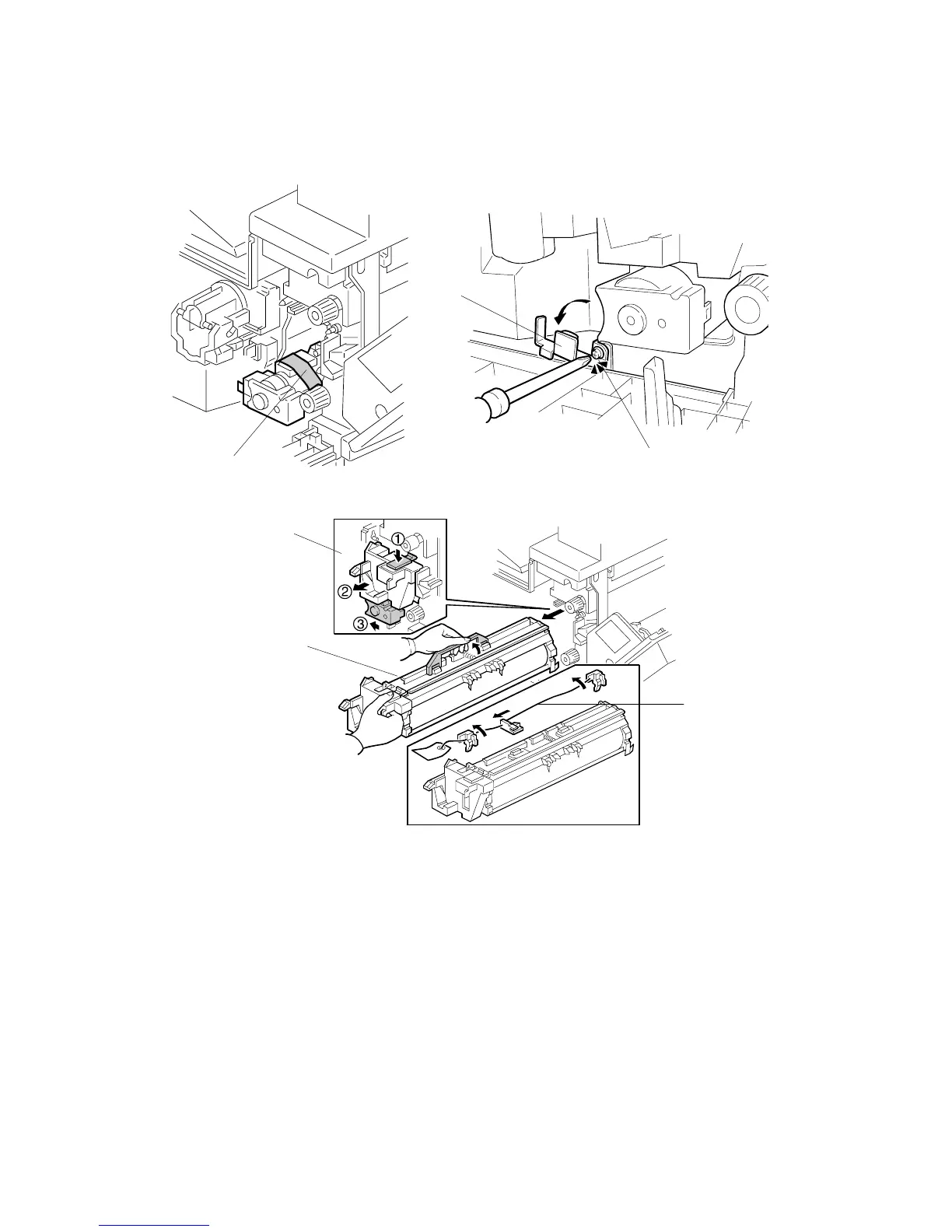

1. Open the front cover and remove the tape and retainers [A].
2. Loosen [B] (! x1) and rotate the bracket [C].
3. At [D]: Push down lever
!
. Pull the PCU out a small distance
"
, and then
push the development unit to the left
#
so the development unit is away from
the drum.
4. Slowly slide out the PCU [E] and place it on a clean flat surface.
5. Remove the three clamps and wire [F].
B004I104.WMF
B004I511.WMF
A284I500.WMF
[D]
[E]
[F]
[A]
[B]
[C]
