26 January, 2001 DRIVE AREA
3-69
Replacement
Adjustment

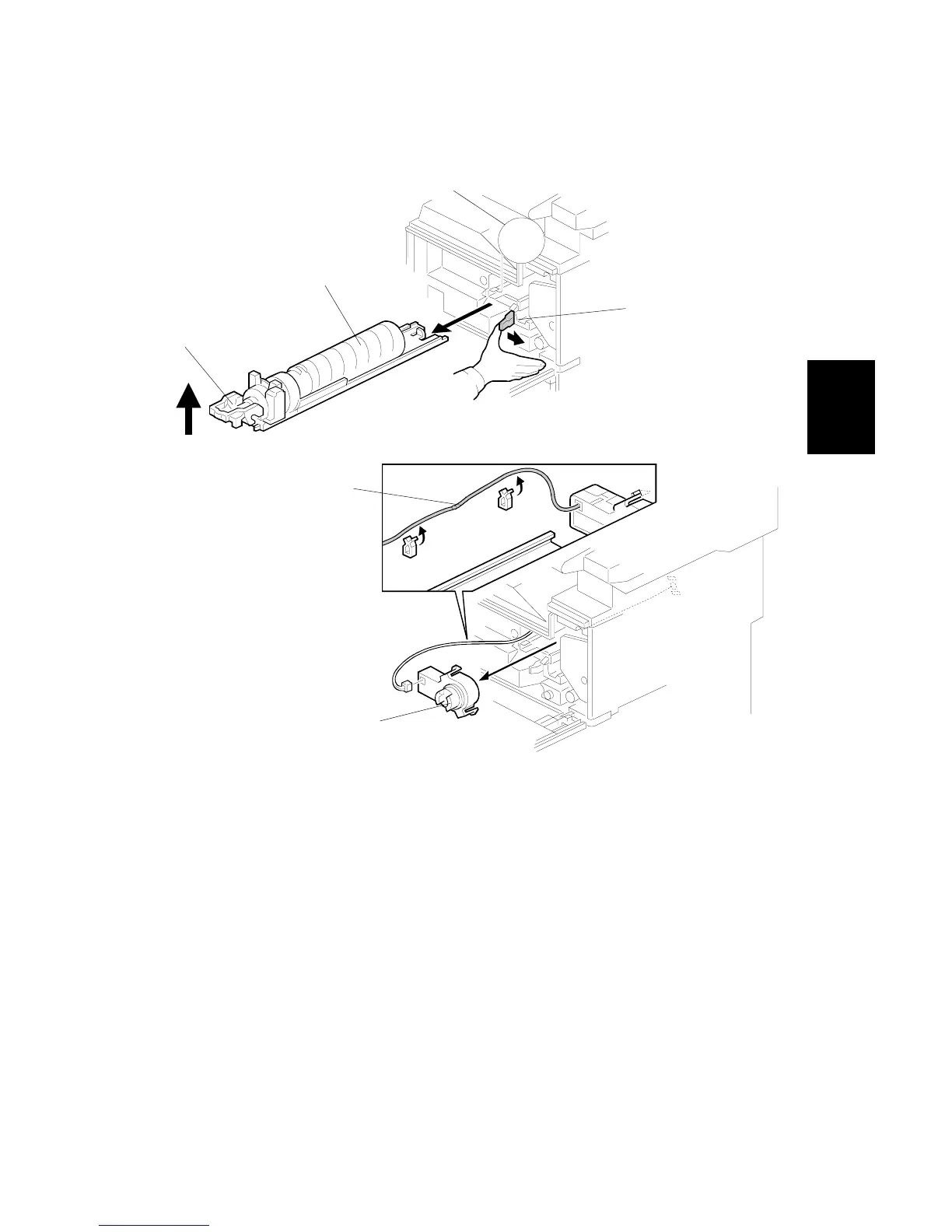

3.18.3 TONER SUPPLY MOTOR
1. Open the front door
2. Raise holder handle [A]
3. Push the holder lever [B] to the right
4. Stopper [C]
5. Toner bottle holder and bottle [D]
6. Motor harness [E] (clamps x 2)
7. Toner supply motor [F] (hooks x2, " x1)
NOTE: Press in on both sides of the motor to release it.
B004R921.WMF
B004R922.WMF
[B]
[C]
[E]
[F]
[A]
[D]
