26 January, 2001 PHOTOCONDUCTOR UNIT (PCU)
3-29
Replacement
Adjustment
3.11.4 CHARGE ROLLER/CHARGE ROLLER CLEANING PAD
1. Remove the drum. (☛ 3.11.2)
2. Two snap rings [A] (# x2)
3. Slide out front charge roller holder [B]
4. Charge roller [C]
NOTE: Do not touch the charge roller.
5. Remove charge roller cleaning pad [D] (4 hooks)
6. After replacing the charge roller, check the value of SP2-001-1. If it is not at the
standard value (1630V), set SP2-001-1 to –1630V.
NOTE: If this is not done, the carrier will be attracted to the drum because the
charge roller voltage will be too high.

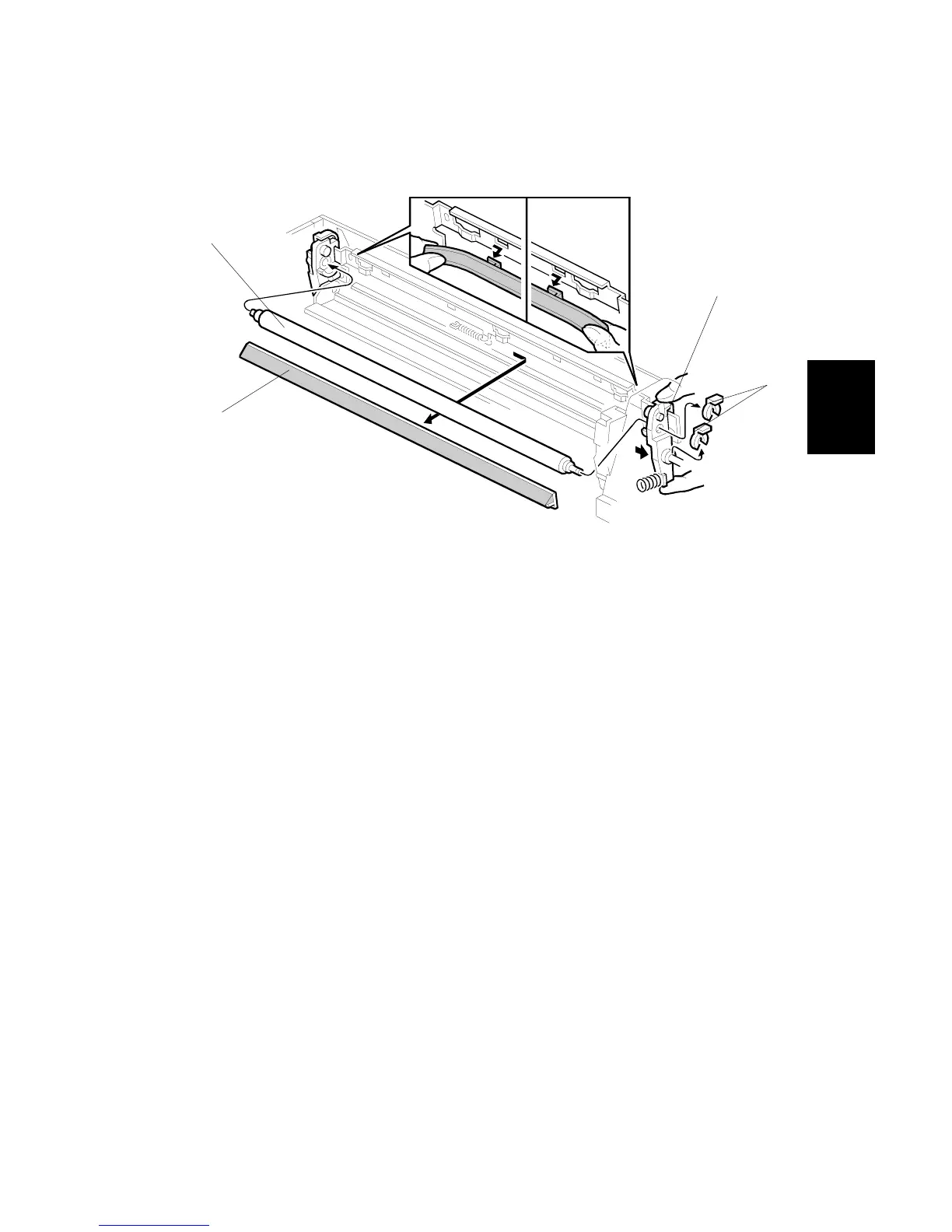

B004R306.WMF
[A]
[B]
[C]
[D]
