3.14.3 RELAY/UPPER PAPER FEED AND LOWER PAPER FEED
CLUTCHES
1. Rear lower cover (☛ 3.7.2)
2. First paper feed clutch bracket [A] (! x2, bushing x1)
3. Second paper feed clutch bracket [B] (! x2, bushing x1)
4. Drive bracket [C] (! x1, spring x1, bearing x1)
5. Relay clutch [D] (" x1)
6. Upper paper feed clutch [E] (" x1)
7. Lower paper feed clutch [F] (" x1)

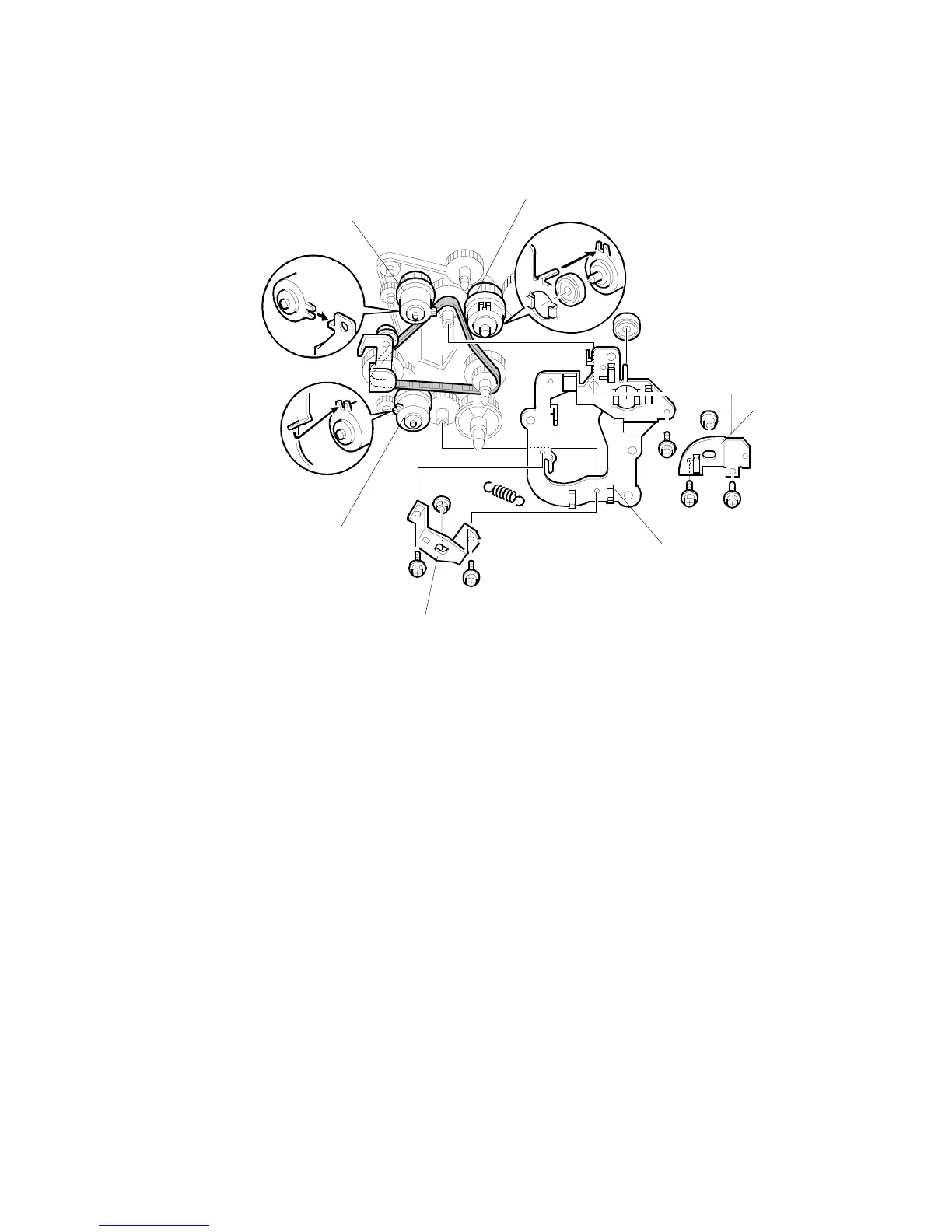

B004R973.WMF
[A]
[B]
[C]
[D]
[E]
[F]
