Ricoh A-C2 User Manual

26 January, 2001 SCANNER UNIT
3-13
Replacement
Adjustment
3.9.6 EXPOSURE LAMP
1. ARDF (☛ 3.9.1)
2. Exposure glass (☛ 3.9.2)
3. Operation panel [A] (! x2, " x1)
4. Slide 1st scanner [B] to the cutout to expose connector and screw.
5. Exposure lamp [C] (! x1, " x1)
NOTE: Never touch the glass surface of the exposure lamp with fingers. Slide
the exposure lamp toward the rear to disengage the tab on its base
from the hole below and then lift out.

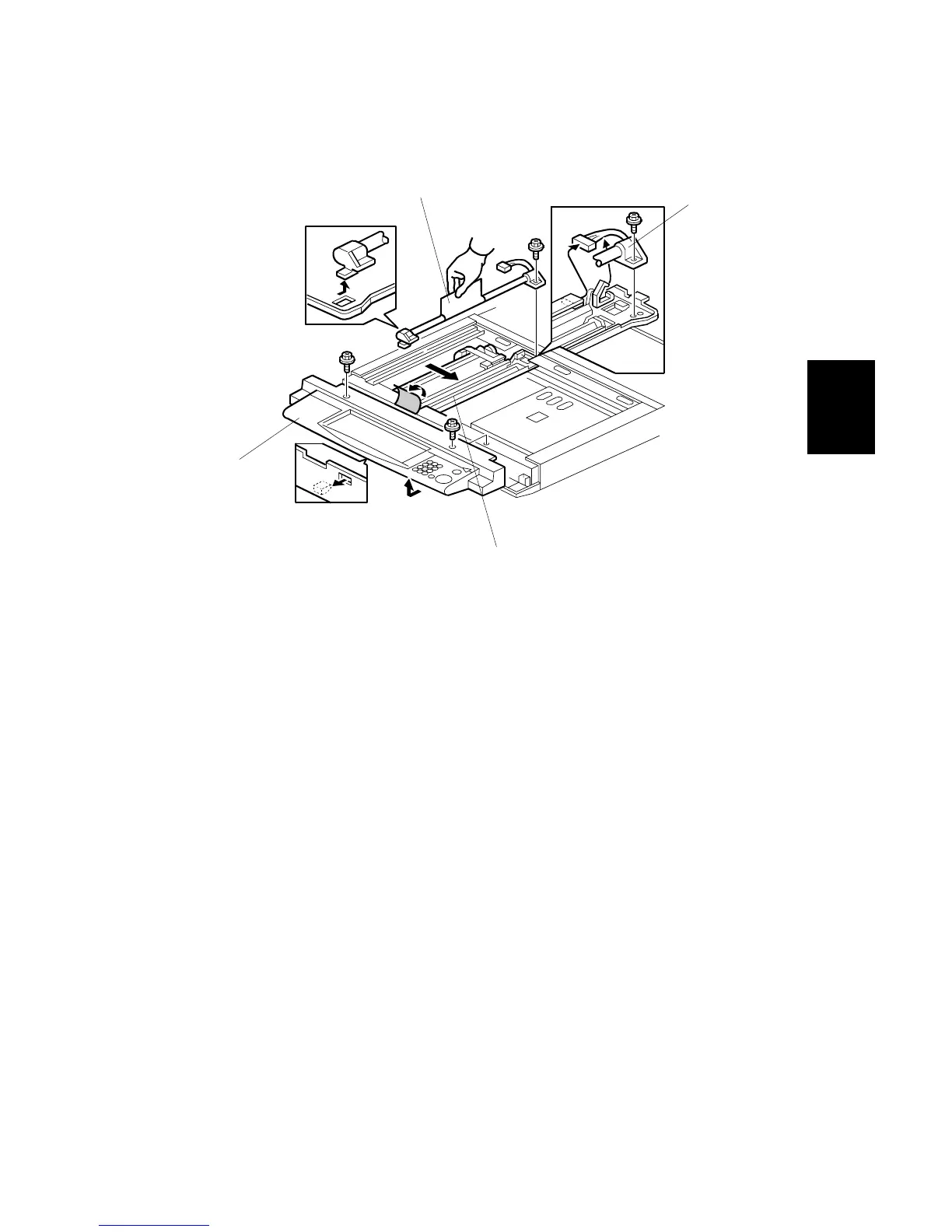

B004R105.WMF
[A]
[B]
[C]
[D]
